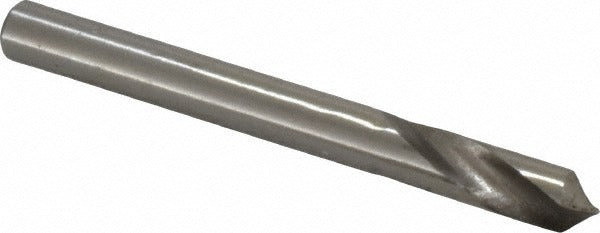

Precision Twist Drill 6000094 Spotting Drill 90 Degree Hss

Product Description

The PRECISION TWIST DRILL 6000094 is a 90-degree spotting drill designed to accurately locate and start holes before finish drilling. Manufactured from high speed steel (HSS) with a bright/uncoated finish, it delivers reliable performance in general-purpose machining applications. The cutting diameter measures 0.25 inches, the overall length is 2.5 inches, and the flute length is 0.75 inches. The straight cylindrical shank seats securely in standard drill chucks and collets. This drill is suited for machinists, toolroom technicians, and production floor operators working with ferrous and common non-ferrous materials.

The 6000094 spotting drill is used in machine shop environments, job shops, and production settings where accurate hole location is required before drilling with a twist drill or boring tool. The 90-degree point angle is a widely used geometry for spotting operations on vertical machining centers, drill presses, and manual mills. Single-ended construction and a two-flute spiral design allow clean chip evacuation and consistent point contact. It is appropriate for residential and commercial fabrication shops handling light to medium duty drilling tasks.

Key Features

• 90-degree drill point angle for accurate hole spotting and center location
• High speed steel construction for durability in general-purpose machining
• Bright/uncoated finish suitable for a wide range of common workpiece materials
• Two-flute spiral design promotes efficient chip evacuation
• Straight cylindrical shank compatible with standard chucks and collets
• Single-ended, right-hand cut geometry for conventional spindle rotation

Compatibility

Designed as a general-purpose spotting drill compatible with standard drill chucks, ER collet systems, and toolholders accepting a 0.25-inch straight cylindrical shank. Part of the PRECISION TWIST DRILL SPS-90 series.

Installation Notes

Installation and use should be performed by a qualified machinist or toolroom technician familiar with rotary cutting tools. Ensure the machine spindle is fully stopped and the tool is securely clamped in the holder before beginning any operation. Verify that the shank is fully seated and the chuck or collet is tightened to the tool manufacturer's recommended procedure before engaging the workpiece. Follow applicable shop safety standards and machine tool operating guidelines at all times.
