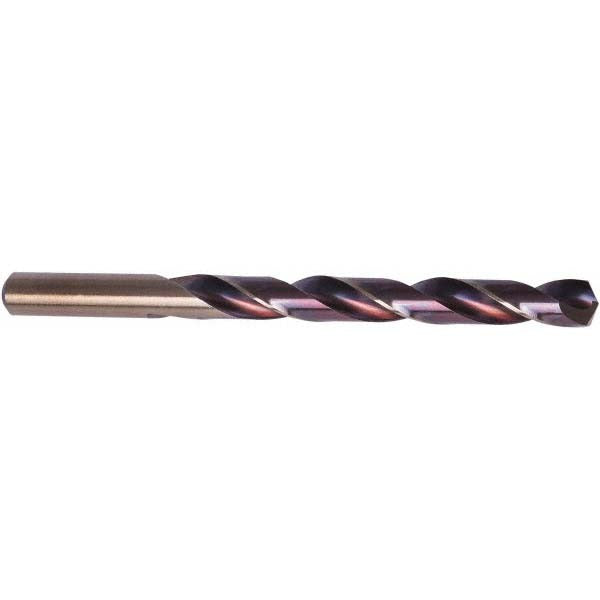

Precision Twist Drill 5996295 5/32 in Hss Jobber Drill

Product Description

The PRECISION TWIST DRILL 5996295 is a 5/32 inch high speed steel jobber-length drill bit designed for general-purpose metal drilling in production and maintenance applications. It features a 135-degree split-point geometry with web thinning to reduce walking and thrust on entry, a bronze coating for lubricity and surface protection, and a straight cylindrical shank sized at 5/32 inch (0.1563 inches decimal) for use in standard drill chucks. Overall length is 3.125 inches with a 2-inch flute length. The M2 HSS construction handles the heat and abrasion demands of everyday steel and ferrous metal drilling. This bit is sold individually and is part of the Series HX10-HX15-HX18 lineup.

This drill bit is suited for drilling steel, stainless steel, cast iron, superalloys, and titanium in residential, commercial, and industrial settings. Typical users include HVAC technicians, plumbers, electricians, and general metalworkers who need a reliable jobber-length bit for sheet metal penetrations, bracket fabrication, and field modifications. The 13xD flute-to-diameter ratio provides adequate chip clearance for through-hole drilling in most common workpiece thicknesses. The regular spiral and tapered web configuration are well matched to hand-held drills and drill presses alike.

Key Features

• 5/32 inch diameter (0.1563 inches decimal) straight cylindrical shank fits standard chucks
• 135-degree split point with web thinning reduces thrust and self-centers on entry
• M2 high speed steel construction withstands drilling heat in steel, stainless, cast iron, and titanium
• Bronze coating adds lubricity and surface protection to extend service life
• 2-inch maximum drilling depth supports through-holes in typical structural and sheet stock
• Right-hand spiral flute, ANSI-compliant, no coolant-through requirement

Compatibility

Designed as a general-purpose replacement jobber drill bit compatible with any standard drill chuck accepting a 5/32 inch straight cylindrical shank. Part of Series HX10-HX15-HX18.

Installation Notes

Secure the shank fully in a properly sized drill chuck before operation. Always wear eye protection and secure the workpiece before drilling. Recommended for use with cutting fluid when drilling stainless steel, superalloys, or titanium to manage heat buildup. Power down and isolate any electrical panels or live systems before drilling into finished assemblies on live equipment.
