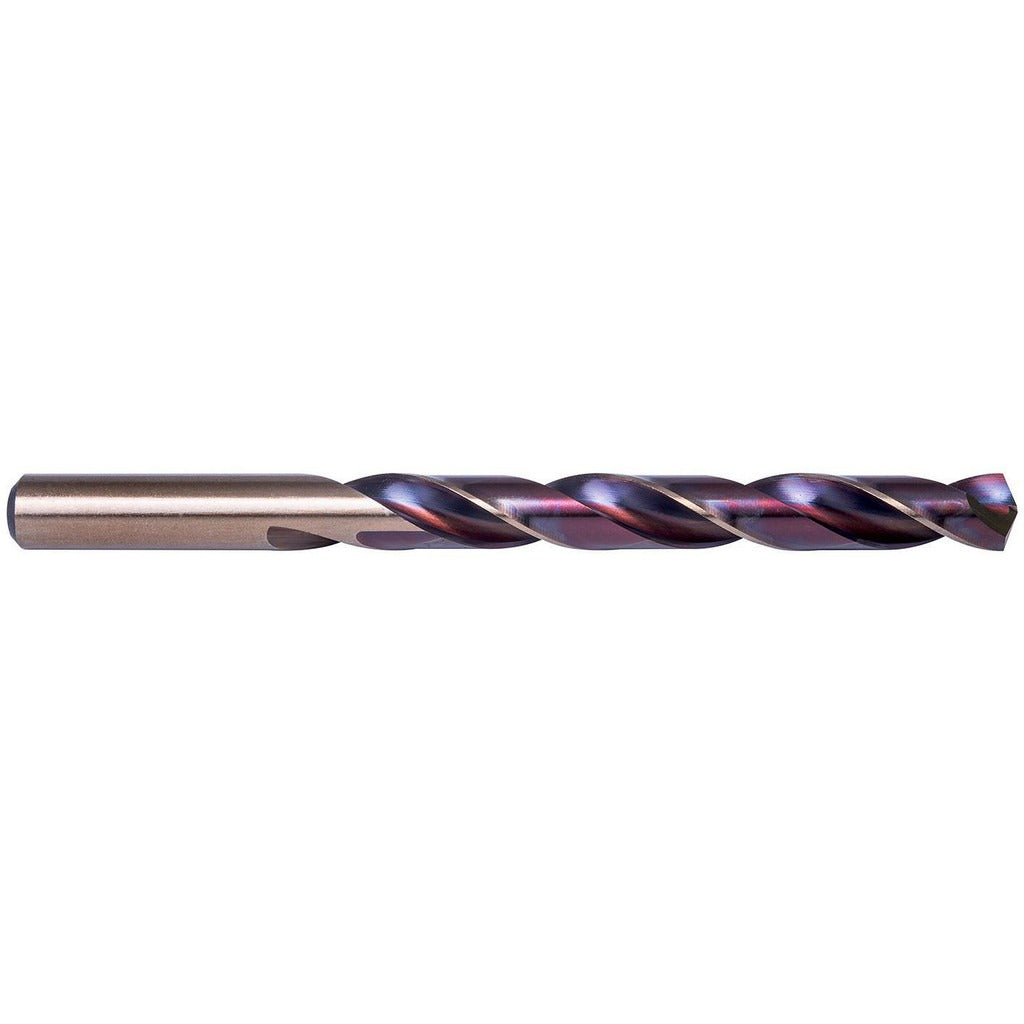

Precision Twist Drill 5995846 No. 34 Hss Jobber Drill

Product Description

The PRECISION TWIST DRILL 5995846 is a No. 34 wire-size jobber-length drill bit designed for precision drilling in high-temp alloys and other demanding materials. Built from high-speed steel with a bronze (straw) coating, it features a 135-degree split-point with web thinning for fast engagement and reduced walking on entry. The overall length is 2.625 inches with a 1.5-inch flute length. Right-hand cutting with a regular spiral flute pattern, this bit suits machinists, maintenance techs, and fabricators who need consistent performance in production or field drilling applications.

Sized at 0.1110 inches (No. 34 wire gauge), this bit is suited for drilling high-temperature alloys as well as ferrous and non-ferrous metals in general-purpose applications. Its straight shank fits standard drill chucks without adapters, making it a practical choice for hand drills, drill presses, and CNC setups. The 14xD flute-to-diameter ratio supports chip evacuation in moderate-depth holes. This bit is sold individually and fits within the HX10-HX15-HX18 series lineup from PRECISION TWIST DRILL.

Key Features

• No. 34 wire size, 0.1110-inch diameter for precision-tolerance hole sizing
• 135-degree split point with web thinning reduces entry force and bit walking
• High-speed steel construction with straw (bronze) coating for heat resistance
• Regular spiral flute with tapered web for consistent chip evacuation
• Right-hand cut, straight cylindrical shank fits standard chucks
• Meets ANSI standards; rated for high-temp alloy and general-purpose drilling

Compatibility

Part of the PRECISION TWIST DRILL HX10-HX15-HX18 series. Designed as a general-purpose jobber drill for use in standard drill chucks accepting straight-shank bits at 0.1110-inch diameter.

Installation Notes

Install and remove drill bits only after the drill press or power tool is fully powered down. Secure the straight shank firmly in a keyed or keyless chuck before operation. Use appropriate cutting fluid or coolant when drilling high-temp alloys to extend bit life, noting this bit does not support coolant-through delivery. Follow applicable shop safety practices and manufacturer speed-and-feed recommendations for the workpiece material.
