PRECISION SC-1000C 1 in. NPT Water Hammer Arrestor

Product Description

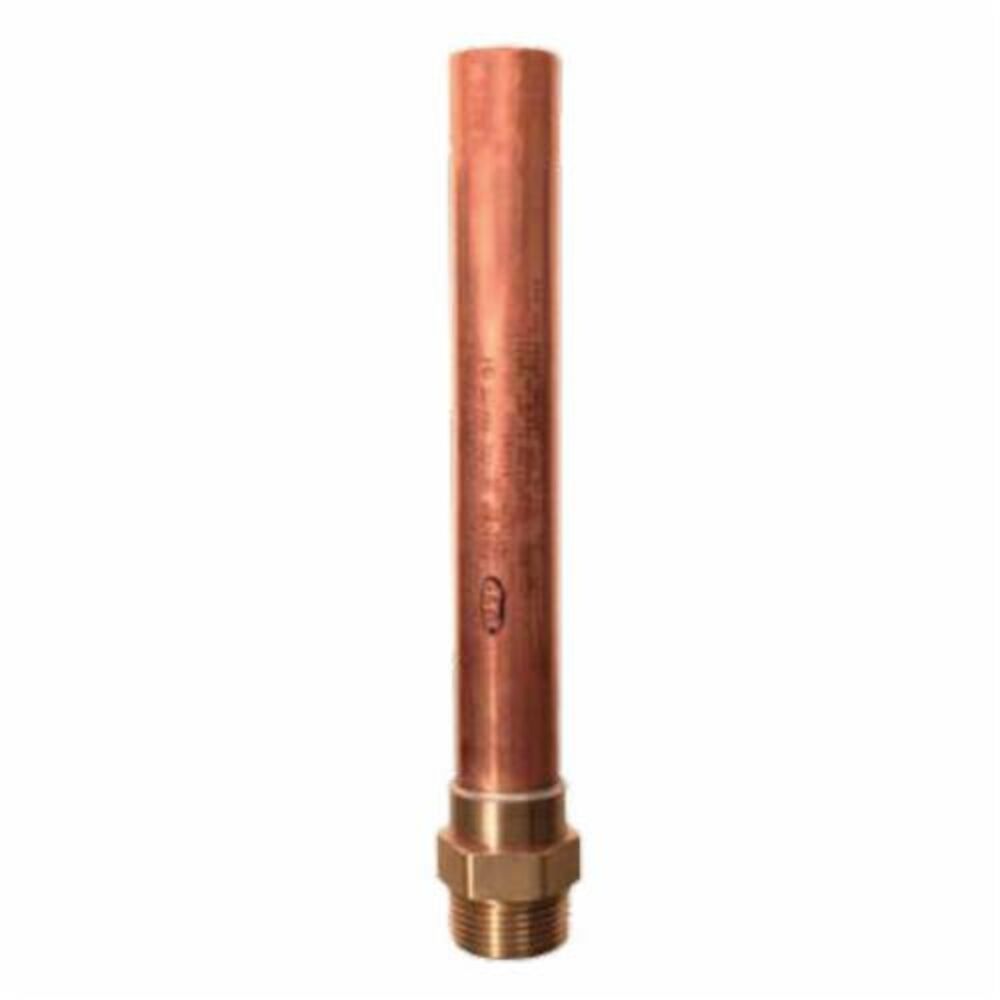

The PRECISION SC-1000C water hammer arrestor reduces hydraulic shock in plumbing systems. It has a simple design that includes only a piston as the moving part. The barrel is made from Type L hard-drawn copper while the piston is crafted from a composite material with a C69300 low lead brass threaded adapter. This component is lubricated with Dow-Corning silicone compound #111, making it safe for drinking water systems.

This arrestor operates effectively in systems within a pressure range of zero to eighty psig and can manage shock spikes up to four hundred psig. It is constructed without lead. The brass end style enhances its suitability for both residential and commercial plumbing needs. Installation can be done using a standard pipe tee in both new and existing plumbing setups.

• Features maintenance-free design with a single moving piston.
• Constructed with durable copper and composite materials.
• Operational in systems up to eighty psi, with a maximum spike pressure rating of four hundred psi.

Product Highlights

Efficient design to minimize hydraulic shocks in plumbing applications.

Product Information

Standard Information

• End Style: NPT
• Nominal Size: 1 in

Technical Specifications

• Pressure Rating: 0 to 80 psig
• Body Material: Copper
• Overall Dimensions: 9-1/4 inches OAL
• Manufacturer: Precision Plumbing Products
• Manufacturer Number: SC-1000C
• Softgoods Material: EPDM O-Ring
• Temperature Rating: -40 to 212 degrees Fahrenheit
• Domestic/Import: Domestic
• Applicable Standard: ASSE 1010, UPC, ISO 9001/140001, PDI WH-201
• Fixture Unit Rating: 33-60
• Inlet Connection: Male Threaded
• Inlet Size: 1 Inch
• Vendor UPC: 671411101237
• Spherical Piston Material: Composite
• Top Shape: Round
• Type: Piston
