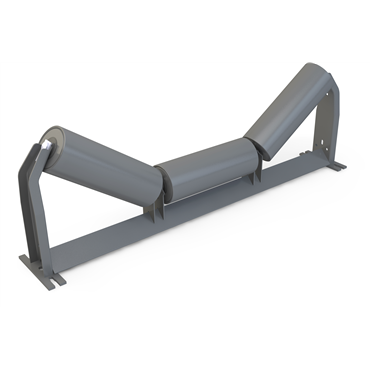

Precision Pulley & Idler D6-35TE-48SB Troughing Equal Idler - CEMA D Rating, 35 Degrees Angle, 6 in Roll Diameter, 48 in Belt Width

Product Description

The Precision Pulley & Idler D6-35TE-48SB is a CEMA D 35 degree Equal Trougher Idler designed for heavy-duty applications. This product serves to support conveyor systems effectively, ensuring optimal performance and longevity.

• Belt width of forty-eight inches
• Roller diameter of six inches
• Overall length of fifty-nine and a half inches

Product Highlights

This idler is engineered for durability and performance in material handling systems.

Product Information

Standard Information

• Brand: Precision Pulley & Idler
• MPN: D6-35TE-48SB

Technical Specifications

• Roller Length: 46.9375 inches
• Trough Angle: 35 degrees
• Base To Horizontal Roller Height: 9.5 inches
• Bearing Type: SB
• Overall Width: 9.5 inches
• Overall Height: 19.6875 inches
• Idler Type: Equal Trougher
• Belt Width: 48 inches
• Mounting Hole Spacing Width: 7.5 inches
• Roller Diameter: 6 inches
• Bolt Hole Spacing - Length: 57 inches
• Overall Length: 59.5 inches
• Horizontal Roller Length: 17.625 inches
• CEMA Class: CEMA Class D - Medium/Heavy Duty
• Bolt Hole Spacing - Width: 7.5 inches
• Mounting Hole Spacing Length: 57 inches
• Weight: 111 pounds
