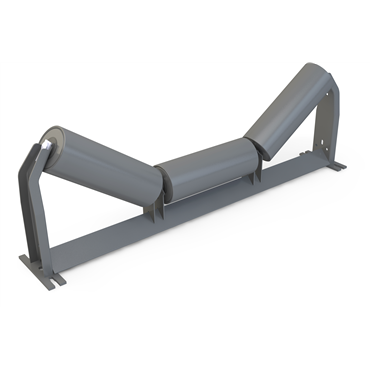

Precision Pulley & Idler D6-35TE-42SB Troughing Equal Idler - CEMA D Rating, 35 degrees Angle, 6 in Roller Diameter, 42 in Belt Width

Product Description

The Precision Pulley & Idler D6-35TE-42SB is designed for efficient material handling in various conveyor systems. This troughing equal idler supports a belt width of forty-two inches and features a roller diameter of six inches, providing effective load distribution. Ideal for use in applications that require medium to heavy-duty operations, it complies with CEMA standards, ensuring high performance.

• Equal trougher idler type
• CEMA Class D for medium and heavy-duty use
• 35 degrees trough angle for optimal material flow

Product Highlights

This idler is built for durability and maintenance-free operation. It includes high-quality sealed ball bearings and a protective contact seal system to keep contaminants out.

Product Information

Standard Information

• Brand: Precision Pulley & Idler
• MPN: D6-35TE-42SB

Technical Specifications

• Idler Type: Equal Trougher
• Belt Width: 42 inches
• Roller Diameter: 6 inches
• CEMA Class: D - Medium/Heavy Duty
• Trough Angle: 35 degrees
• Roller Length: 41.18 inches
• Overall Length: 53.5 inches
• Overall Width: 9.5 inches
• Overall Height: 18.4375 inches
• Mounting Hole Spacing Width: 7.5 inches
• Mounting Hole Spacing Length: 51 inches
• Bearing Type: SB
• Weight: 101.0 lbs
