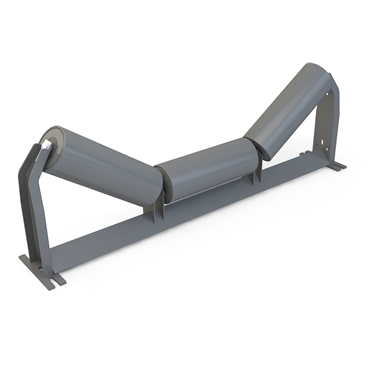

Precision Pulley & Idler D5-35TE-24SB CEMA D 35 Degree Equal Trougher Idler

Product Description

The Precision Pulley & Idler D5-35TE-24SB is a CEMA Class D 35-degree equal trougher idler designed for efficient material handling. This idler is built to support a belt width of twenty-four inches and features a roller diameter of five inches.

• Constructed for medium to heavy-duty applications
• Equipped with sealed ball bearings for low maintenance
• Compliant with CEMA standards

Product Highlights

Ideal for conveyor systems, this idler ensures smooth operation and longevity.

Product Information

Standard Information

• Brand: Precision Pulley & Idler
• MPN: D5-35TE-24SB

Technical Specifications

• Roller Diameter: 5 inches
• CEMA Class: D - Medium/Heavy Duty
• Idler Type: Equal Trougher
• Roller Length: 24.5625 inches
• Base To Horizontal Roller Height: 8.5 inches
• Belt Width: 24 inches
• Mounting Hole Spacing Width: 6 inches
• Overall Width: 8 inches
• Overall Height: 13.8125 inches
• Overall Length: 35 inches
• Trough Angle: 35 degrees
• Weight: 52 pounds
• Type Of Bearing: Ball Bearing
