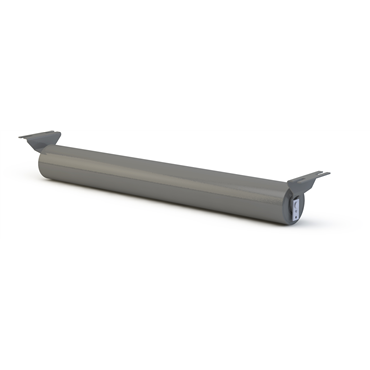

Precision Pulley & Idler B5-R-24SB CEMA B Return Idler

Product Description

The Precision Pulley & Idler B5-R-24SB is a CEMA B Return Idler designed for efficient material handling systems. It accommodates a belt width of twenty-four inches and features a roller diameter of five inches. This idler is suitable for light duty applications, conforming to CEMA standards for dimensions.

• Roller length measures twenty-seven and three-eighths inches.
• Factory sealed lubrication system for enhanced durability.
• Constructed with high-quality steel tubing.

Product Highlights

The B5-R-24SB idler is essential for maintaining proper alignment and efficiency in conveyor systems.

Product Information

Standard Information

• Brand: Precision Pulley & Idler
• Part #: 101680886

Technical Specifications

• CEMA Class: CEMA Class B - Light Duty
• Overall Height: 5 inches
• Overall Width: 8 inches
• Overall Length: 35 inches
• Weight: 23.0 lbs
• Roller Material: Steel
• Idler Type: Return Idler
• Roll Diameter: 5 inches
• Lubrication: Factory Sealed
• Bracket Length: 35 inches
• Bracket Width: 8 inches
• Distance Between Roller Ends: 27 3/8 inches
• Distance Between Mounting Holes: 33 inches
• Type of Bearing: Ball Bearing
