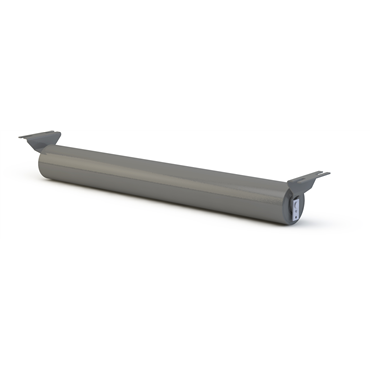

Precision Pulley & Idler B4-R-24SB Return Idler CEMA B - Light Duty 24 in

Product Description

The Precision Pulley & Idler B4-R-24SB is designed for effective material handling. It features a CEMA class B rating and is suitable for light-duty applications. This return idler supports a belt width of twenty-four inches and offers reliable performance in various conveyor systems.

• Rated for CEMA Class B - Light Duty applications.
• Constructed from durable steel material.
• Maintenance-free design with high-quality sealed ball bearings.

Product Highlights

This return idler is ideal for maintaining belt alignment and reducing wear on the conveyor system. Its robust build ensures longevity and reliability.

Product Information

Standard Information

• Part Number: B4-R-24SB
• Brand: Precision Pulley & Idler

Technical Specifications

• Roller Material: Steel
• Center Roll Height: 2 inches
• Overall Length: 35 inches
• Overall Height: 4 inches
• Roller Diameter: 4 inches
• Belt Width: 24 inches
• Bracket Width: 8 inches
• Lubrication: Factory Sealed
