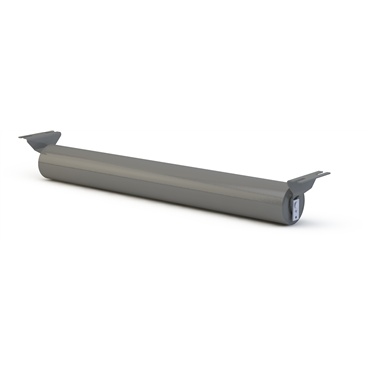

Precision Pulley & Idler B4-R-18SB Return Idler 4 in Roller Diameter 18 in Belt Width

Product Description

The Precision Pulley & Idler B4-R-18SB is a CEMA B rated return idler designed for efficient and reliable material handling. With a roller diameter of four inches and an eighteen-inch belt width, this idler is suitable for light-duty applications in conveyor systems.

• Conforms to CEMA Class B standards
• Features high-quality ball bearings for durability
• Factory sealed for maintenance-free operation

Product Highlights

This return idler provides reliable performance in various industrial applications and is built to endure tough conditions.

Product Information

Standard Information

• Brand: Precision Pulley & Idler
• Part Number: B4-R-18SB

Technical Specifications

• Roller Diameter: 4 in
• Belt Width: 18 in
• Roller Length: 21.375 in
• CEMA Class: CEMA Class B - Light Duty
• Idler Type: Return Idler
• Overall Length: 29 in
• Overall Width: 8 in
• Weight: 16.0 LB
• Mounting Hole Spacing Width: 4 in
• Lubrication: Factory Sealed
