Precision Pulley & Idler B4-35TE-36SB CEMA B 35 Degree Equal Trougher Idler

Product Description

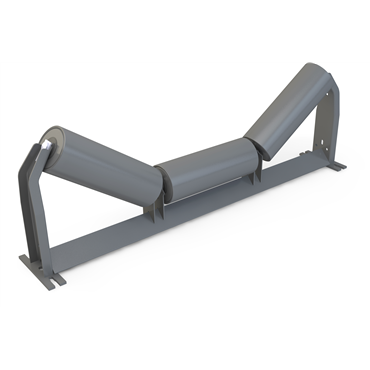

The Precision Pulley & Idler B4-35TE-36SB is a CEMA B 35 degree Equal Trougher Idler. This idler is designed for conveyor systems with a belt width of thirty-six inches. It features a roller diameter of four inches and is suitable for light-duty applications.

• Belt width: 36 inches
• Roller diameter: 4 inches
• Equal troughing design

Product Highlights

This idler offers a robust construction and is factory sealed for maintenance-free operation. It is built to provide reliable service in various material handling environments.

Product Information

Standard Information

• Brand: Precision Pulley & Idler
• MPN: B4-35TE-36SB

Technical Specifications

• Overall height: 14.6875 inches
• Roll type: Three rolls, equal length
• CEMA class: CEMA Class B - Light Duty
• Bearing type: SB, Ball Bearing
• Mounting hole spacing width: 6 inches
• Horizontal roller length: 13.25 inches
• Overall width: 8 inches
• Roller length: 13.25 inches, 36.125 inches
• Belt width: 36 inches
• Trough angle: 35 degrees
• Mounting hole spacing length: 45 inches
• Roller diameter: 4 inches
• Center roll height: 2 inches
• Overall length: 47 inches
• Roller material: Steel
• Idler type: Carrying Idler, Equal Trougher
• Lubrication: Factory Sealed
• Weight: 45.0 lbs
