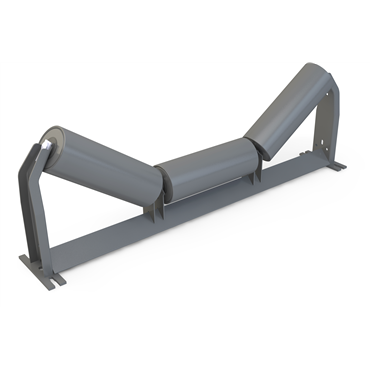

Precision Pulley & Idler B4-35TE-18SB Troughing Equal Idler - CEMA B 35 degrees Angle, 4 in Roll Diameter, 18 in Belt Width

Product Description

The Precision Pulley & Idler B4-35TE-18SB is a troughing equal idler designed for various conveyor applications. It is suitable for field conveyors, feeder belt conveyors, and radial stacker conveyors.

• 18 inches belt width
• 4 inches roller diameter
• CEMA Class B - Light Duty

Product Highlights

This idler features an enhanced seal design and a newly designed end bell. Its frame is heavily reinforced for durability in demanding environments.

Product Information

Standard Information

• Applications: Field conveyors, feeder belt conveyors, radial stacker conveyors
• Features: Enhanced seal design, newly designed end bell, heavy-duty frame

Technical Specifications

• Overall Length: 29 inches
• Trough Angle (Nom): 35 degrees
• CEMA Class: CEMA Class B - Light Duty
• Idler Type: Carrying Idler, Equal Trougher
• Mounting Hole Spacing Width: 6 inches
• Bracket Width: 8 inches
• Overall Height: 10.9375 inches
• Horizontal Roller Length: 6.75 inches
• Roller Span: 18.9375 inches
• Bolt Hole Spacing - Length: 27 inches
• Overall Width: 8 inches
• Belt Width: 18 inches
• Roller Material: Steel
• Roller Diameter: 4 inches
• Lubrication: Factory Sealed
• Weight: 29.0 LB
