PRECISION PULLEY & IDLER Precision Pulley & Idler B4-20TE-18SB CEMA B 20° Equal Trougher Idler
PRECISION PULLEY & IDLER Precision Pulley & Idler B4-20TE-18SB CEMA B 20° Equal Trougher Idler

Precision Pulley & Idler B4-20TE-18SB CEMA B 20° Equal Trougher Idler

Brand: PRECISION PULLEY & IDLER
SKU: B4-20TE-18SB
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

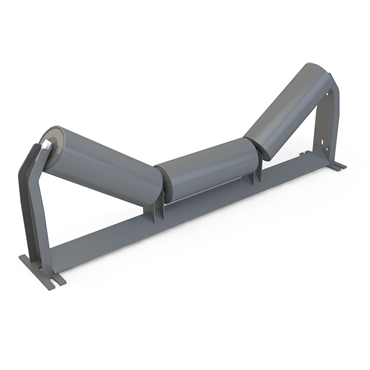

The Precision Pulley & Idler B4-20TE-18SB is a CEMA B rated equal trougher idler. It features a belt width of eighteen inches and a roller diameter of four inches, making it suitable for various conveyor systems. This idler is designed to meet rigorous standards, ensuring durability and performance in material handling applications.

  • Belt width: eighteen inches
  • Roller diameter: four inches
  • Trough angle: twenty degrees

Product Highlights

This idler is engineered for long-lasting operation with minimal maintenance. It comes with factory-sealed ball bearings for reliable performance.

Product Information

Standard Information

  • Brand: Precision Pulley & Idler
  • Part Number: B4-20TE-18SB
Technical Specifications
Overall Height
nine point four three seven five inches
Horizontal Roller Length
six point seven five inches
Lubrication
factory sealed
Roller Span
twenty point six one six inches
Roller Diameter
four inches
Bolt Hole Spacing - Length
twenty seven inches
Bolt Hole Spacing - Width
six inches
Overall Width
eight inches
Overall Length
twenty nine inches
Roller Material
steel
Roller Length
six point seven five inches
Trough Angle (Nom)
twenty degrees
Bracket Width
eight inches
Bearing Type
SB, ball bearing
Idler Type
carrying idler, equal trougher
Installed Options
none
Roll Type
three rolls, equal length
Mounting Hole Spacing Length
twenty seven inches
Base to Horizontal Roller Height
seven inches
CEMA Class
CEMA Class B - light duty
Center Roll Height
seven inches
Mounting Hole Spacing Width
six inches
Weight
twenty eight pounds
