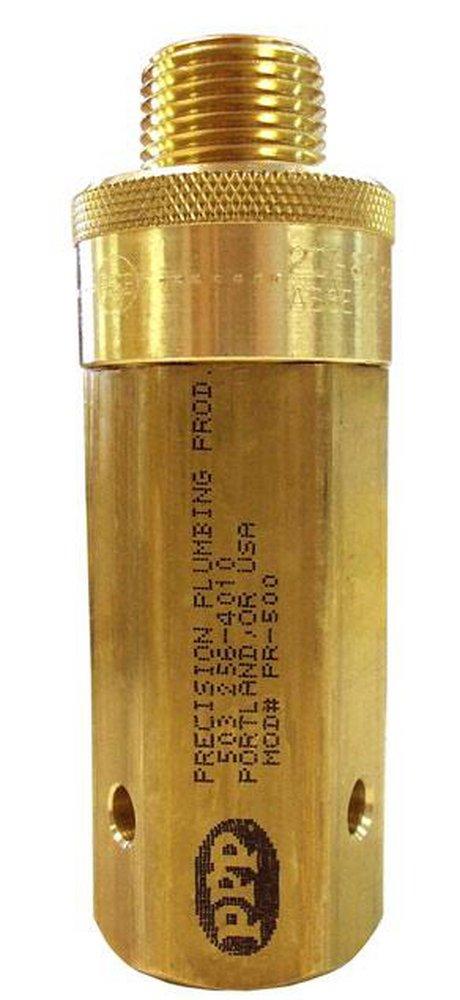

Precision Plumbing Products PR-500 Prime-Rite 1/2 x 4-3/8 in. Trap Primer Valve

Product Description

The Precision Plumbing Products Trap Primer Valve, model PR-500, is a reliable solution for maintaining floor drains by automatically activating when there is a pressure drop. This valve is designed to connect easily to a cold fresh water line of one and a half inches diameter or less. It can automatically prime up to two floor drain traps using a patented water distribution system.

• Operates with a pressure drop of 10 PSIG (70 kPa).
• Works within a pressure range of 20 to 80 PSIG (138 to 552 kPa).
• Requires no adjustment after installation.

Product Highlights

The valve requires a pressure drop to function and is constructed without springs or diaphragms, ensuring durability.

Product Information

Standard Information

• Brand: Precision Plumbing Products
• MPN: PR-500

Technical Specifications

• Connection Size: 1/2 x 1/2 inch
• Connection Type: MNPT x FNPT
• Material: 360 Brass
• Pressure Rating: 20 to 80 psi
• Dimensions: 1-1/4 inch diameter x 4-3/8 inch height
• Standards/Certifications: ASSE 1018, CA/VT compliant
• Applications: For use with floor drains
• Series: Prime-Rite
