Precision Hardware RPSMLR2 Power Supply MLR Kit No Battery Storage

Product Description

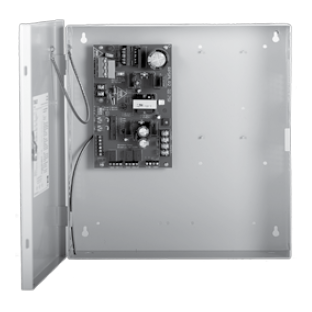

The Precision Hardware RPSMLR2 is a power supply designed for Precision Motorized Latch Retraction (MLR) exit devices. It is a reliable source of filtered and regulated twenty-four Volt DC power, capable of powering two MLR exit devices simultaneously. This unit features a fire alarm termination, ensuring compliance with safety standards, and includes a keyed enclosure for enhanced security.

• Delivers code compliant filtered and regulated power.
• Supports two exit devices at once.
• Fire alarm interface for added safety.

Product Highlights

Product Information

Standard Information

• Model: PHI Precision RPSMLR2
• Commercial/Residential: Commercial

Technical Specifications

• Certifications: UL 294, ULC S-319
• Input Power: 120 VAC
• Fire Alarm Termination: Yes
• Output Power: Two filtered and regulated outputs at 24 Volts DC, 2 Amps
• Auxiliary Output: One filtered and regulated output at 24 Volts DC, 0.8 Amps
• Relay Outputs: Two normal open outputs
• Visual Indicators: LEDs for AC power and input activation
• Enclosure Dimensions: twelve and a half inches by seven and a half inches by three and a quarter inches
• Security: Keyed enclosure
