Precision Hardware A101-002-628 Arm-A-Dor Rim Exit Device W/ Alarm - Automatic Relock - For 3 feet to 4 feet Door Widths

Product Description

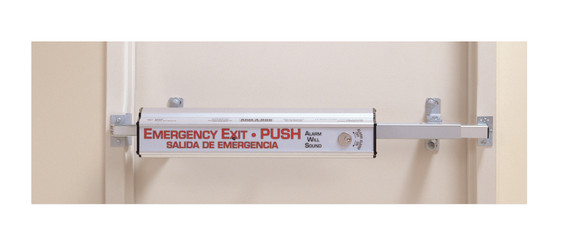

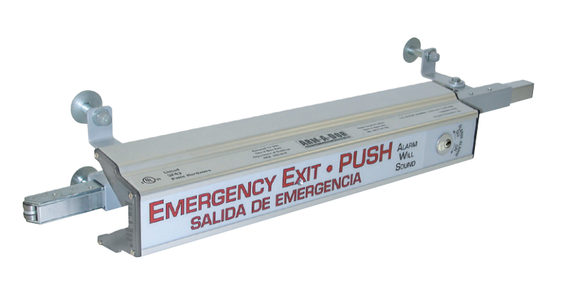

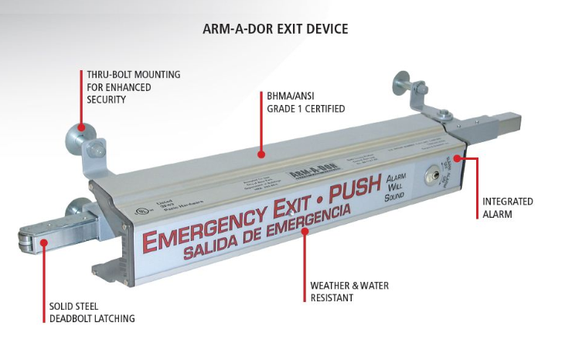

The Precision Hardware A101-002-628 Arm-A-Dor Rim Exit Device features an integrated alarm and automatic relock mechanism. It is suitable for door widths ranging from three to four feet. This exit device is pre-assembled to facilitate installation, enhancing safety in emergency situations.

• Automatic relock feature enhances safety.
• Designed for quick installation using four thru-bolts.
• Compatible with standard door thicknesses of one and three-quarters inches to two and one-quarter inches.

Product Highlights

This exit device is designed for high-traffic areas and meets various safety standards.

Product Information

Standard Information

• Device Type: With alarm
• Finish: 628 - Satin Aluminum, Clear Anodized

Technical Specifications

• Door Dimensions Thickness: 1.75 inches - 2.25 inches
• Door Dimensions Width: 3 feet – 4 feet
• Electrified Options: Exit alarm, Request-to-exit switch, A/C adapter kit
• Certifications: ANSI A117.1 Accessibility Code (ADA) compliant, UL/cUL 10C 3-hour Fire Listed, UL/cUL 305 Listed, Florida Building Code compliant for hurricanes, Miami-Dade County compliant for hurricanes, California State Fire Marshal compliant
• Warranties: 5-year mechanical, 1-year electrical
• Model: Precision A101-002
