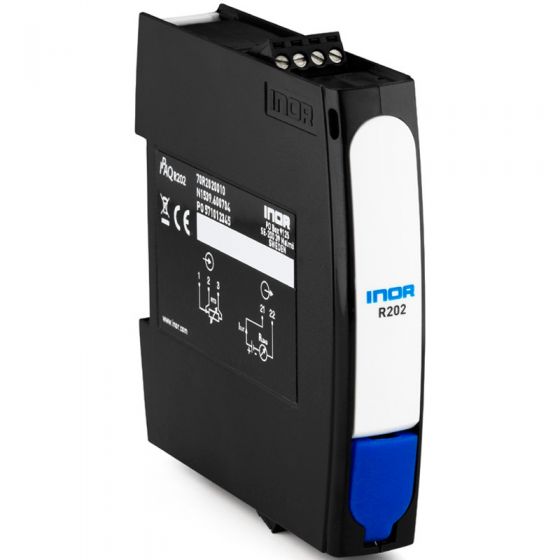

Precision Electric Motor Sales R202 Digital Temperature Transmitter

Product Description

The Precision Electric Motor Sales R202 is a digital temperature transmitter that operates with Pt100 sensors. This device is designed with a runtime counter function, which helps track the operational time between calibrations. It delivers a 4-20 mA output signal and employs a three-wire sensor connection. The transmitter is suitable for rail mounting and is compatible with RTD input.

• Digital temperature transmitter designed for Pt100 sensors.
• Runtime counter function for operational time tracking.
• Provides a reliable 4-20 mA output signal.

Product Highlights

This transmitter is essential for applications that require precise temperature monitoring and calibration tracking.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: R202

Technical Specifications

• Mounting Type: Rail mounted
• Input Type: RTD
• Input RTD: Pt100
• Transmitter Type: Digital
• Output: 4-20 mA
• Isolation: Unisolated
• Measuring Channels: 1 channel
• Sensor Connection: 3-wire connection
• Power Supply: 6 to 32 VDC
• Typical Accuracy: Max. ±0.1K or ±0.1 % of span
