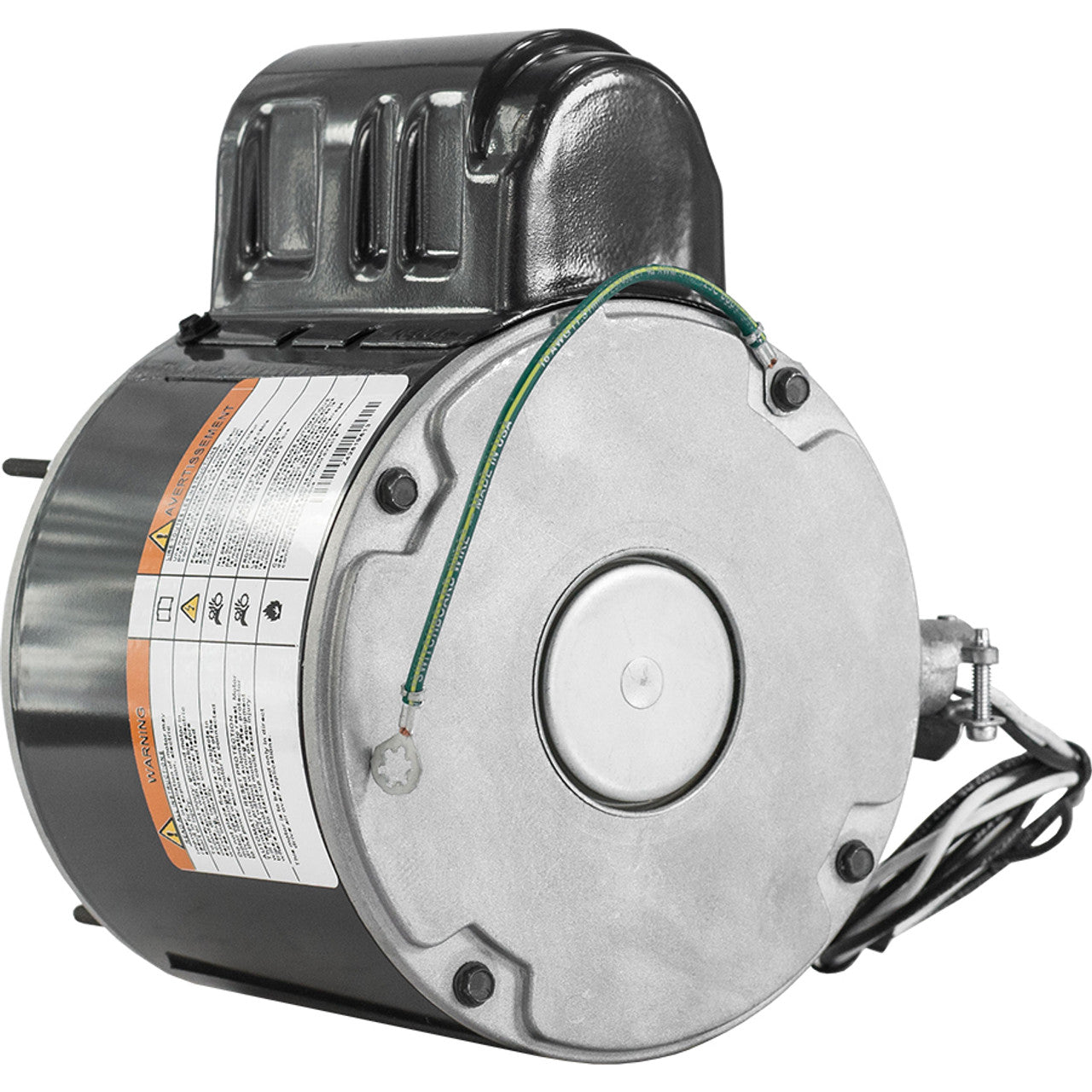

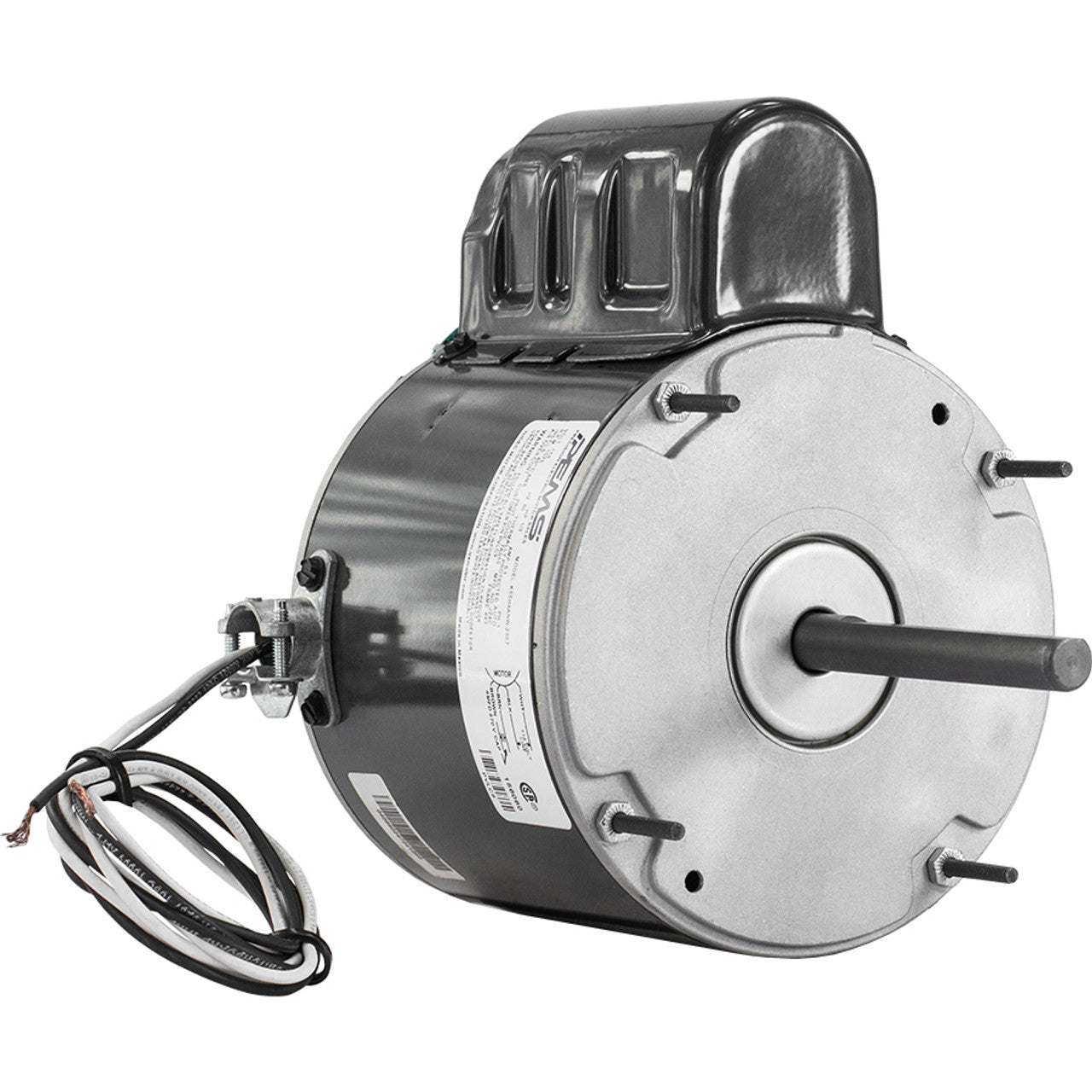

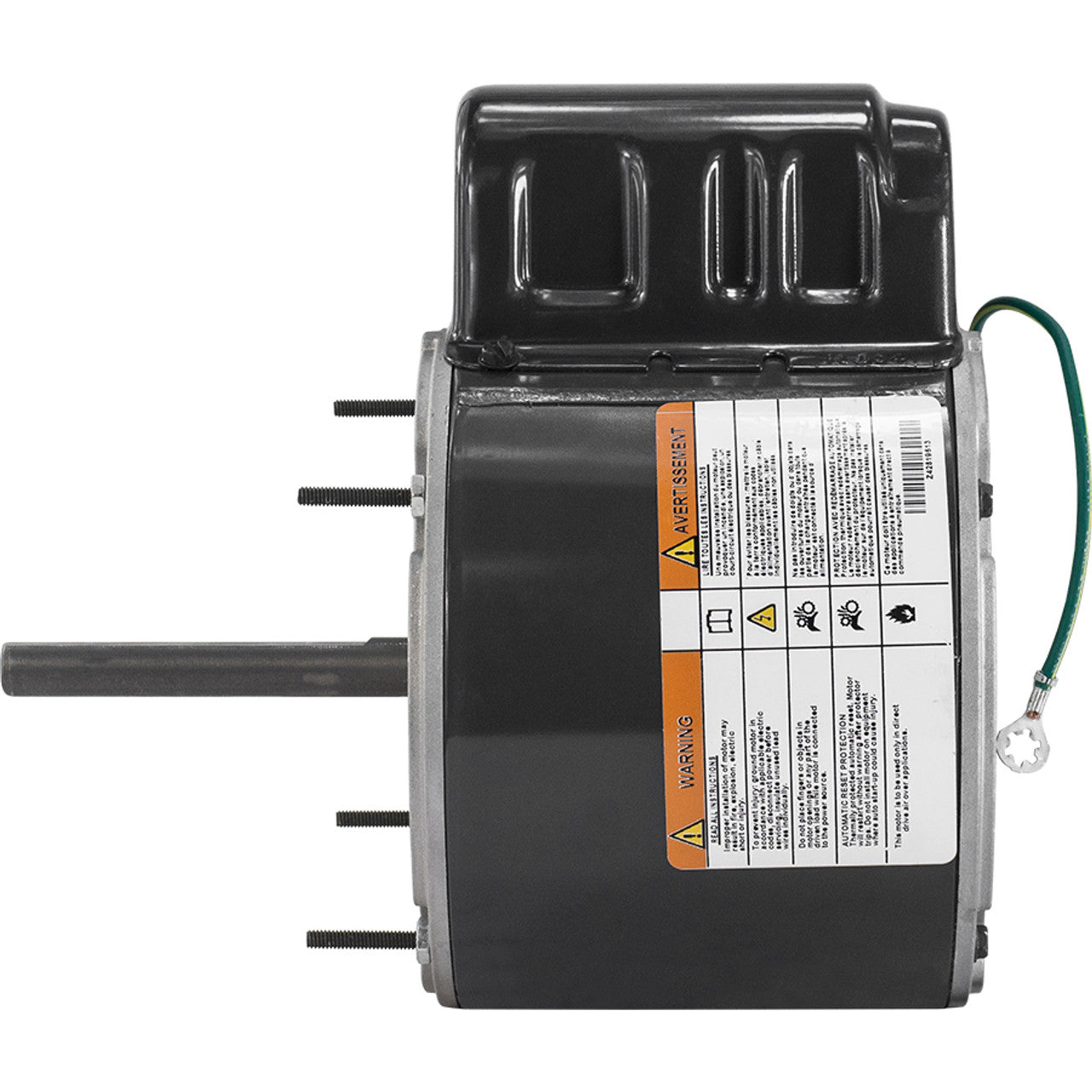

Precision Electric Motor Sales PVLC9 Unit Heater Motor

Product Description

The Precision Electric Motor Sales PVLC9 is a one-third horsepower electric motor used in unit heater applications. It operates on one hundred fifteen volts and runs at a speed of eleven hundred forty RPM. The motor draws a current of five point one amps. This motor features a Totally Enclosed Non-Ventilated (TENV) design and rotates in a clockwise direction.

• Horsepower: 1/3 hp
• Rotation: Clockwise (CW)
• Enclosure: TENV (Totally Enclosed Non-Ventilated)

Product Highlights

This motor provides reliable performance for various heating systems, ensuring durability and safety in operation.

Product Information

Standard Information

• Motor Type: PSC Motor
• Input Voltage: 115V

Technical Specifications

• Horsepower: 1/3 hp
• Speed: 1140 RPM
• Current: 5.1 amps
• Enclosure: TENV
• Rotation: CW
• Shaft Dimensions: 1/2 x 3.5 inches
• Diameter: 5.6 inches
• Mounting: 4.5 O.C. square stud length 0.875, 8-32 thread
• Motor Case Length: 4.56 inches
