Precision Electric Motor Sales PTDV4 Centrifugal Blower

Product Description

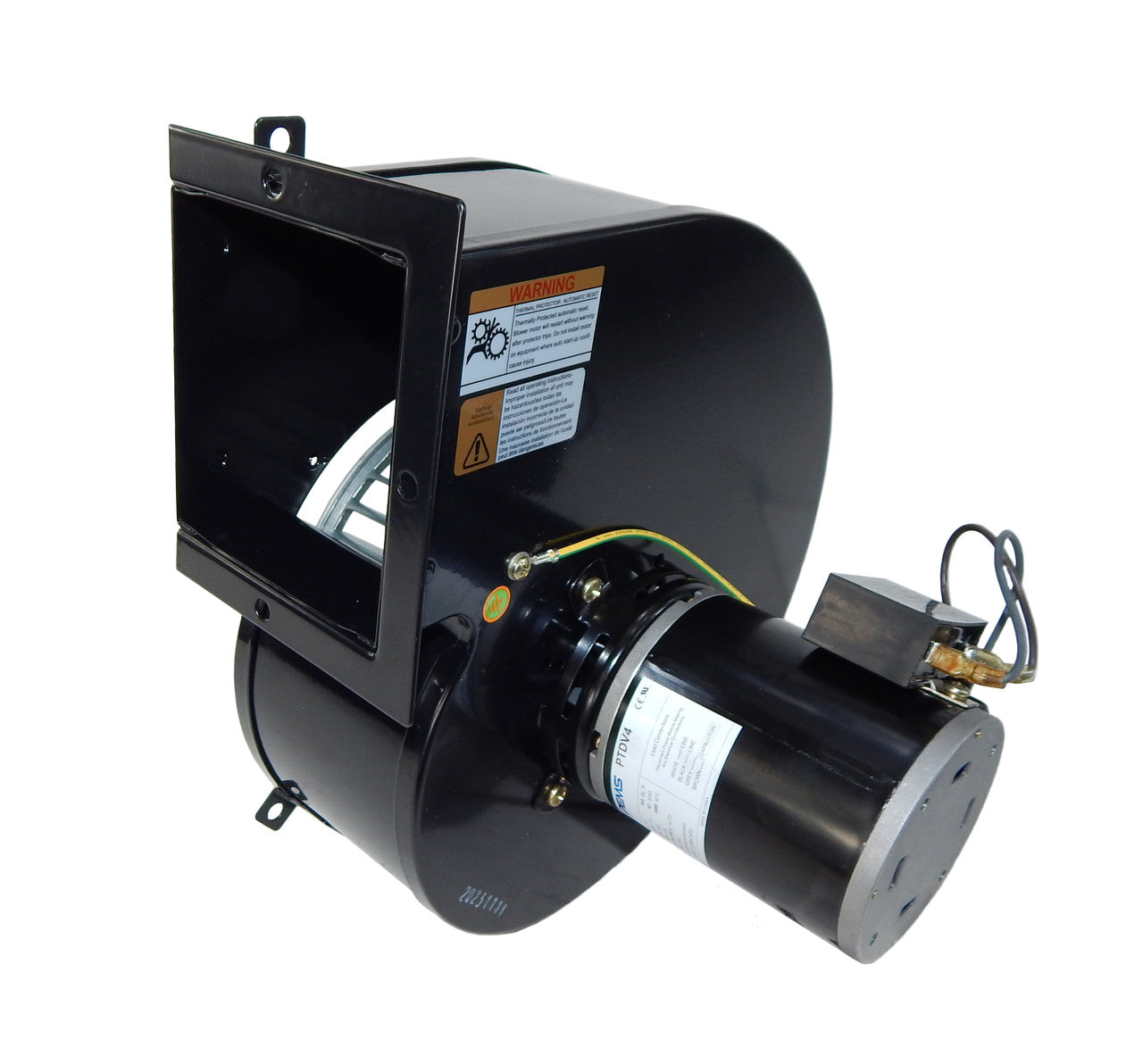

The Precision Electric Motor Sales PTDV4 is a centrifugal blower engineered for high-temperature applications, particularly wood stoves. This blower operates at 115 volts and draws 0.86 amps. It features a 1/15 HP PSC motor with a speed of 1640 RPM. The automatic overload protection ensures safety, while the insulation class B maintains reliable operation at a maximum inlet temperature of four hundred fifty degrees Fahrenheit. The unit can be mounted in any position, is non-reversible, and uses ball bearings for enhanced durability.

• Delivers airflow of 310 CFM.
• Includes a capacitor and conduit box for easy installation.
• cULus approved for quality assurance.

Product Highlights

Suitable for high-temperature operations, this blower is ideal for your HVAC needs, particularly in heating applications.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: PTDV4

Technical Specifications

• HP: 1/15 HP
• Voltage: 115 VOLTS
• Amps: 0.86 AMPS
• RPM: 1640 RPM
• Insulation Class: B
• Max Inlet Temp: 450°F
• CFM: 310 CFM
• Bearing Type: Ball Bearing
• Overload Protection: Automatic
• Motor Type: PSC Motor
• Capacitor Included: Yes
• Mounting: All Positions
• Reversibility: Non Reversible
• Approvals: cULus Approved
• Conduit Box Included: Yes
