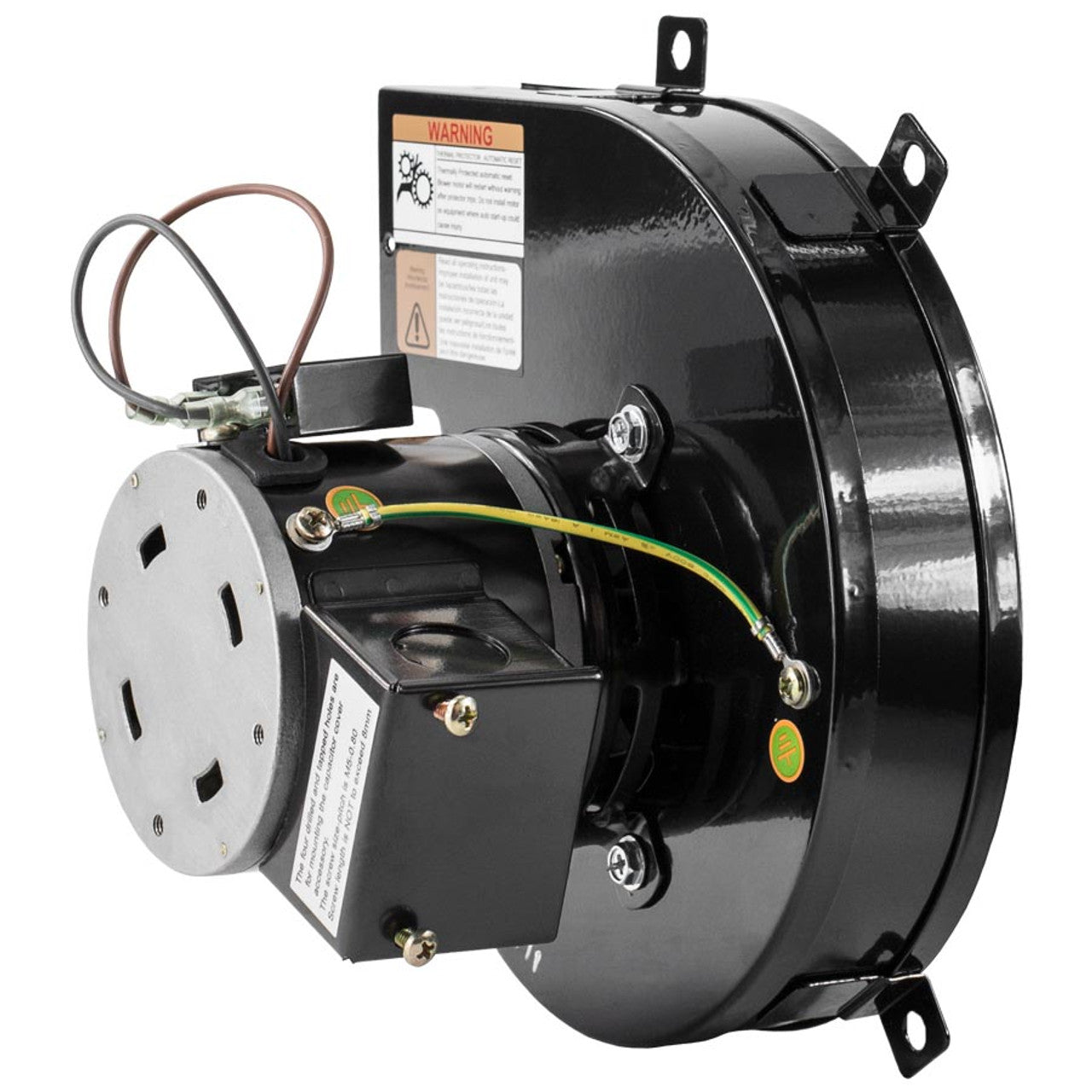

Precision Electric Motor Sales PTDV1 Centrifugal Blower 115 volts 101 CFM

Product Description

The PTDV1 is a centrifugal blower from Precision Electric Motor Sales designed for various air movement tasks. It operates at 115 volts and consumes 0.52 amps, achieving a rotational speed of 2500 RPM. This unit offers automatic overload protection for added safety and features ball bearings for smooth operation. It has an insulation class B rating and can handle a maximum inlet temperature of four hundred fifty degrees Fahrenheit, making it suitable for challenging heat conditions. Its airflow capacity is one hundred one cubic feet per minute (CFM), and it allows for flexible installation in any position.

• Operates on 115 volts.
• Delivers 101 CFM of airflow with automatic overload protection.
• Runs at 2500 RPM with ball bearing support.

Product Highlights

Designed for safety and efficiency, this blower is perfect for both residential and commercial air movement applications.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: PTDV1

Technical Specifications

• HP: 1/45
• Voltage: 115 VOLTS
• Amps: 0.52 AMPS
• RPM: 2500 RPM
• Overload Protection: Automatic
• Insulation Class: B
• Max Inlet Temp: 450°F
• Bearing Type: Ball Bearing
• CFM: 101 CFM
• Mounting: All Positions
• Reversibility: Non Reversible
• Motor Type: PSC Motor
• Capacitor: Included
• Approval: cULus Approved
• Features: Conduit Box Included
