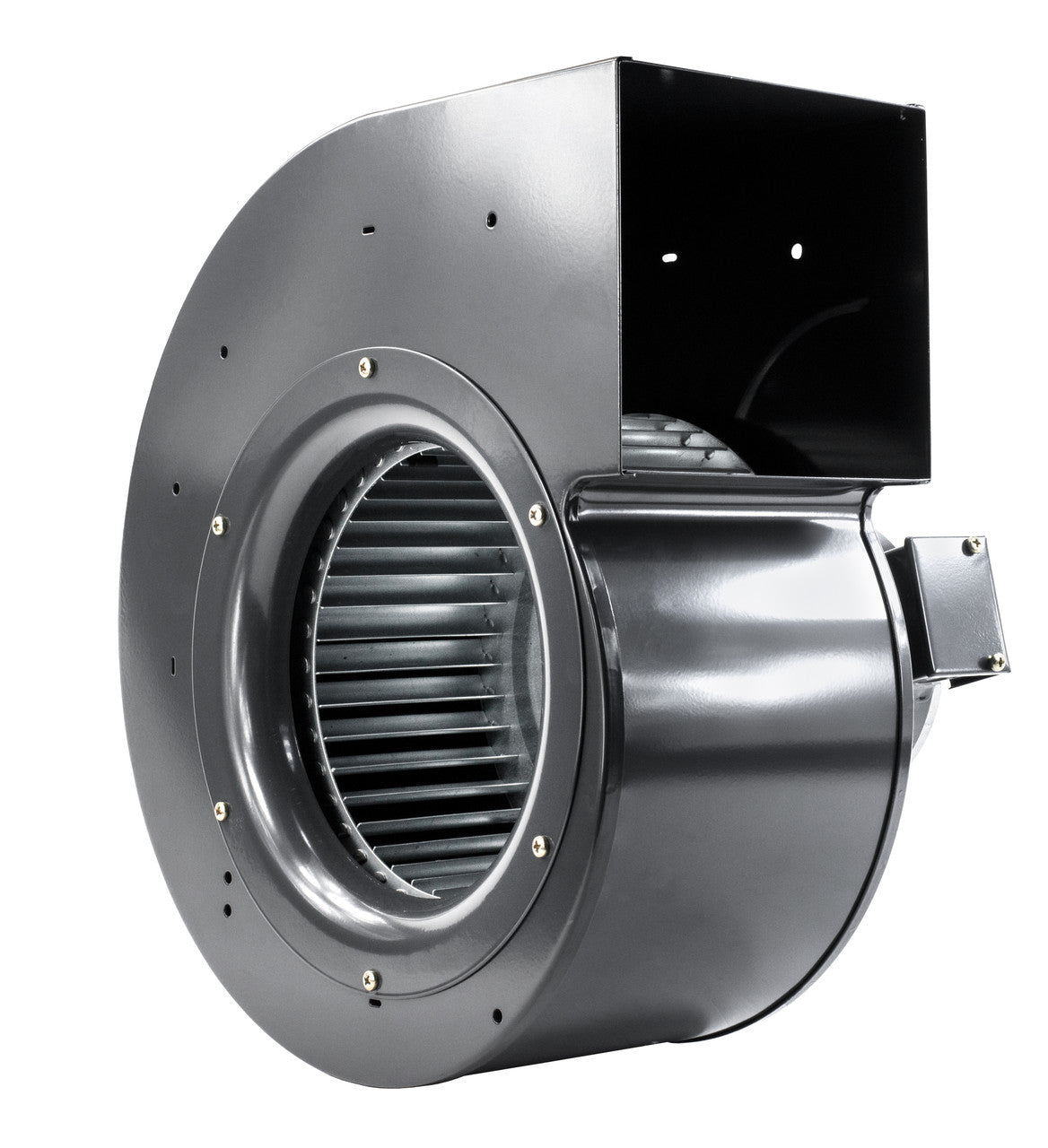

PRECISION ELECTRIC MOTOR SALES PTDT9 Dayton Direct Replacement Blower

Product Description

The Precision Electric Motor Sales PTDT9 is a direct replacement blower for Dayton models 1TDT9, 1TDT9A, and 4C668. It includes a one-sixth horsepower single-speed PSC motor that operates at one thousand thirty RPM. This blower supports dual voltage inputs of one hundred fifteen to two hundred thirty volts at sixty to fifty Hertz and delivers a maximum airflow of seven hundred ninety-four CFM.

• Maximum airflow of seven hundred ninety-four CFM.
• Operates at one hundred fifteen/two hundred thirty volts with a one-sixth horsepower PSC motor.
• Features a painted steel housing, ball bearings, and automatic overload protection.

Product Highlights

This blower is designed for reliable performance with a durable construction and necessary protective features.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: PTDT9

Technical Specifications

• Max Airflow: 794 CFM
• Horsepower: 1/6 hp
• RPM: 1030 RPM
• Speed: Single Speed
• Voltage: 115/230 Volts
• Amperage: 2.75/1.45 amps
• Frequency: 60/50Hz
• Mounting: All Position
• Bearings: Ball Bearings
• Max Inlet Temperature: 104°F
• Outlet Flange Bolt Hole Dimension: 6.25 x 5.75
• Overload Protection: Automatic
• Approval: cULus Approved
• Housing Material: Painted Steel
• Insulation Class: B
• Motor Type: PSC
• Features: Includes Conduit Box
• Reversibility: Non Reversible
• Speed Control: Not recommended for speed control
• Power Connection: No power cord or on/off switch
