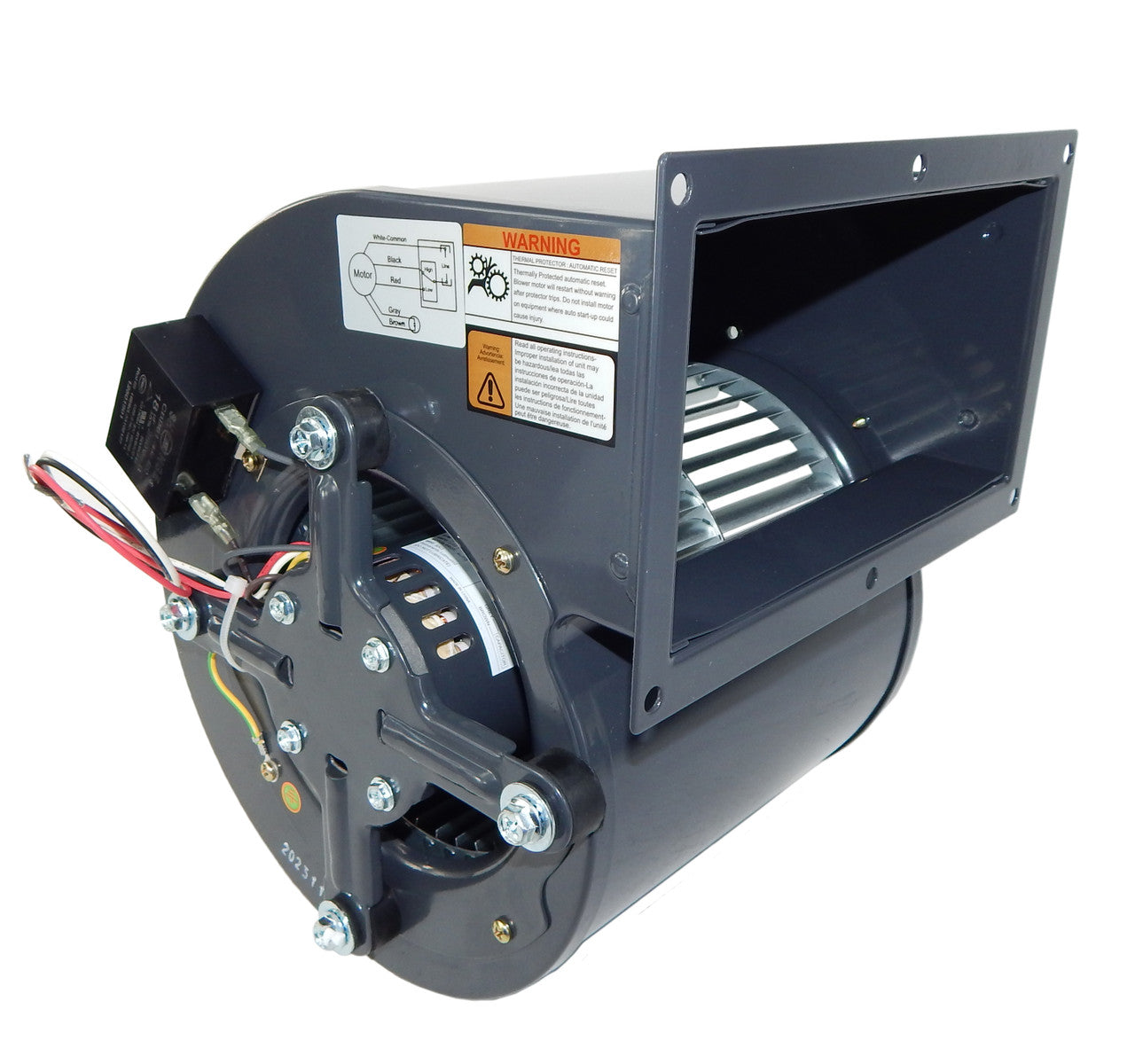

Precision Electric Motor Sales PTDT8 Centrifugal Blower 1/5 HP

Product Description

The Precision Electric Motor Sales PTDT8 is a centrifugal blower designed for applications like pellet and wood stoves. It features a 1/5 HP PSC motor and operates at 115 volts. This model offers two-speed settings with airflow rates of 797 CFM on high and 549 CFM on low.

• Integrated automatic overload protection.
• Ball bearing construction for durability.
• Can be mounted in all positions.

Product Highlights

This blower is effective for heating needs and maintains performance with Class B insulation capable of withstanding temperatures up to 104 degrees Fahrenheit.

Product Information

Standard Information

• HP: 1/5
• Volts: 115

Technical Specifications

• Amps: 3.0/2.1
• RPM: 1350/980
• Speed: 2 Speed, High & Low
• Overload Protection: Automatic
• Insulation Class: B
• Max Inlet Temperature: 104 degrees Fahrenheit
• Bearing Type: Ball Bearing
• CFM: 797/549
• Mounting: All Positions
• Reversibility: Non-Reversible
• Motor Type: PSC Motor
• Capacitor: Included
• Application: Pellet, Wood Stove
