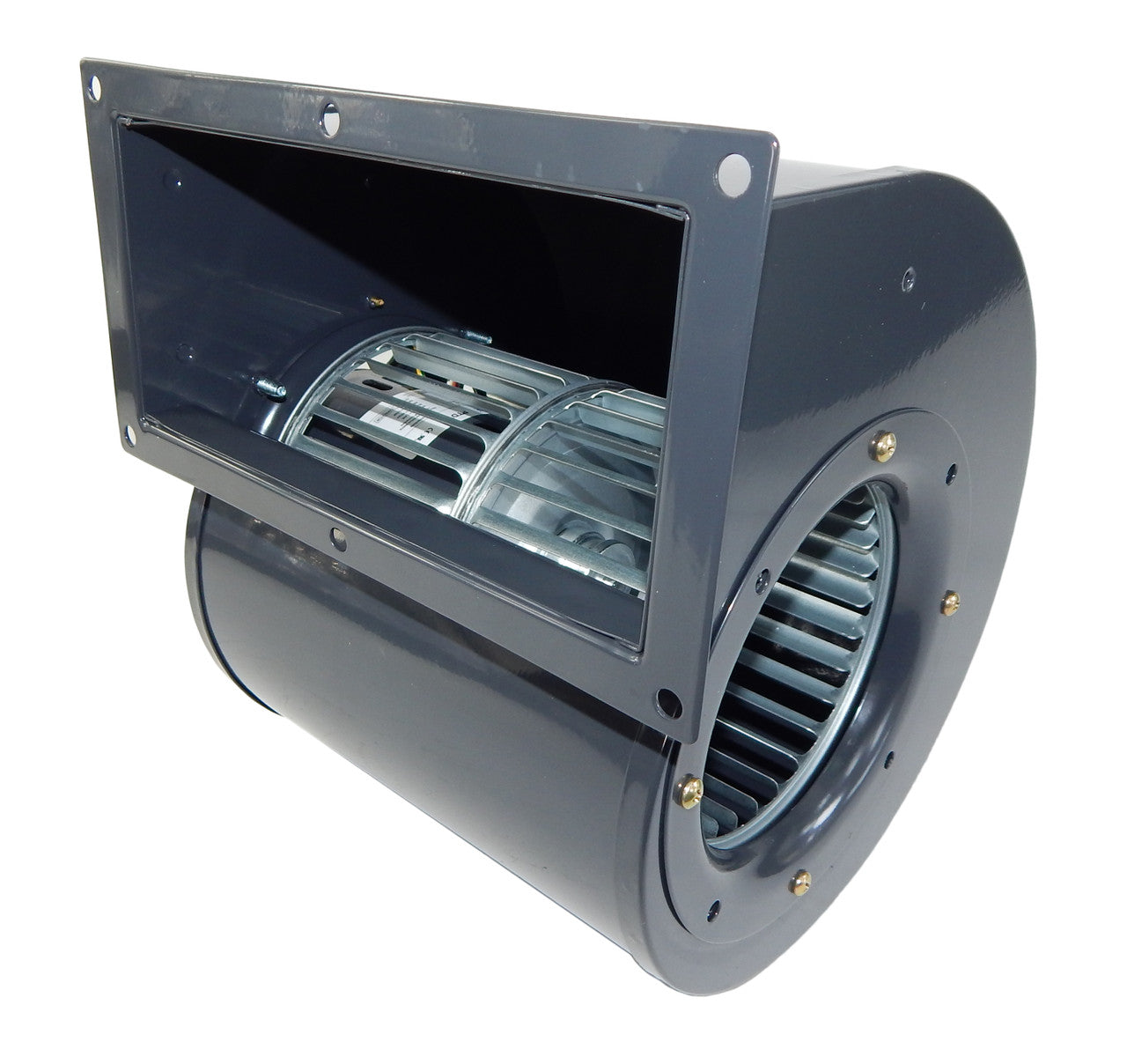

Precision Electric Motor Sales PTDT6 1/15 HP 2-Speed Blower Replacement MPN PTDT6

Product Description

The Precision Electric Motor Sales PTDT6 is a direct OEM aftermarket replacement blower suited for air circulation, discharging, and ventilation. This blower can replace Dayton models 1TDT6 and 4C565, as well as Fasco model 7063-5243. It is designed for applications like pellet stoves, wood stoves, fireplaces, furnaces, and HVAC systems. The PTDT6 operates at two speeds, providing specific airflow and RPM options. It is built with durable materials and features automatic overload protection, enhancing safety and longevity.

• Functions as a direct OEM aftermarket replacement for Dayton 1TDT6 and 4C565.
• Offers a maximum airflow of 428/293 CFM and operates at two speeds, 1500/1085 RPM.
• Includes all-position mounting and ball bearings with automatic overload protection.

Product Highlights

Product Information

Standard Information

• Country of Origin: China
• UPC: 810139480112

Technical Specifications

• HP: 1/15 HP
• Amps: 1.10/0.85 AMPS
• Voltage: 115 Volts
• Frequency: 60/50Hz
• Max Airflow: 428/293 CFM
• Speeds: 2-Speed (High & Low)
• RPM: 1500/1085 RPM
• Mounting: All Position
• Bearings: Ball Bearings
• Max Inlet Temp.: 104F
• Outlet Flange Bolt Hole Dimension: 8-7/8 x 4-3/8
• Overload Protection: Automatic
• Housing Material: Painted Steel
• Insulation Class: B
• Motor Type: PSC
• Conduit Box: Includes
• Reversibility: Non Reversible
• Speed Control Recommendation: Not recommended for speed control
• Power Cord/Switch: No power cord or on/off switch
• Screw Size-Pitch: M5-0.80
