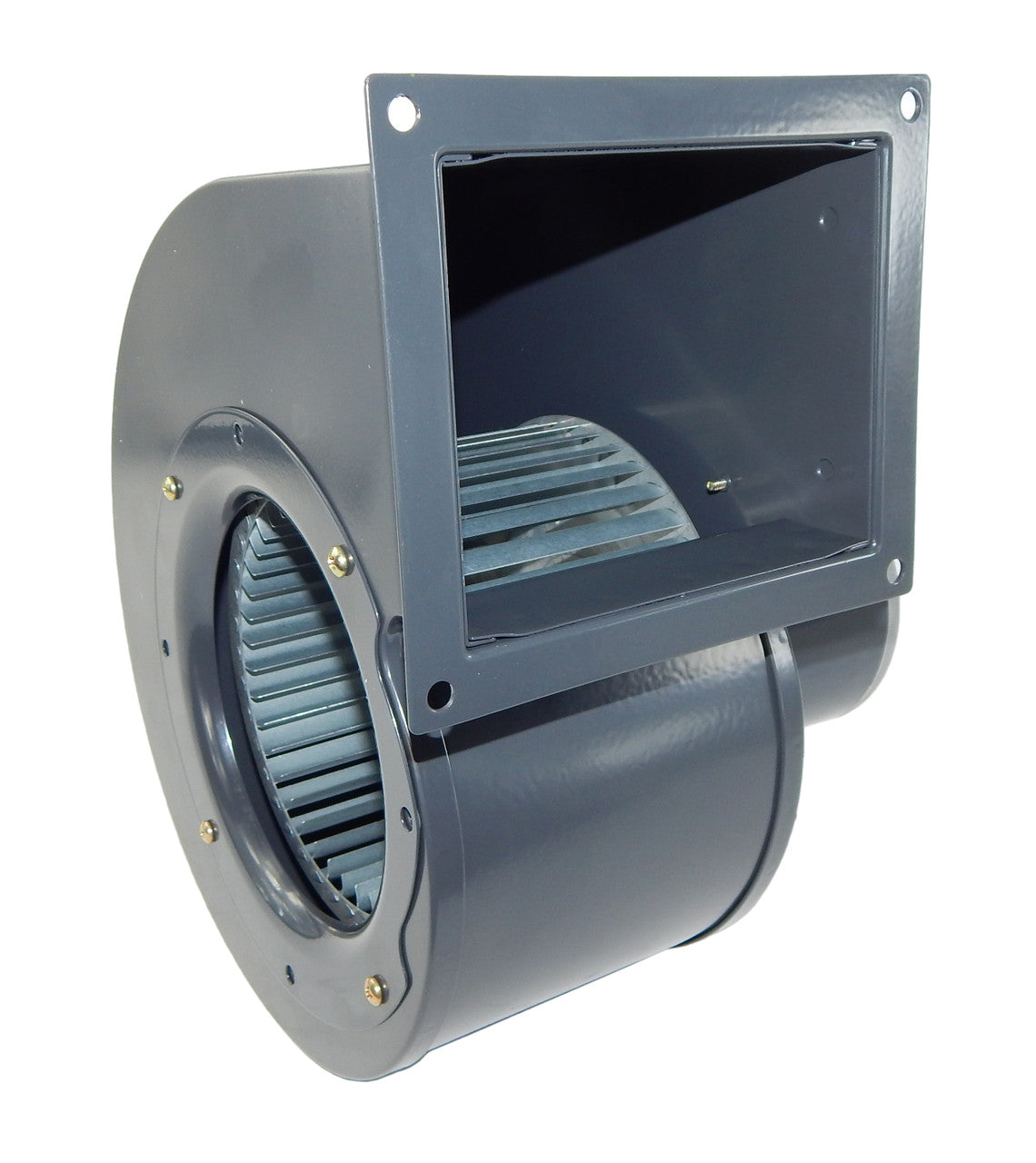

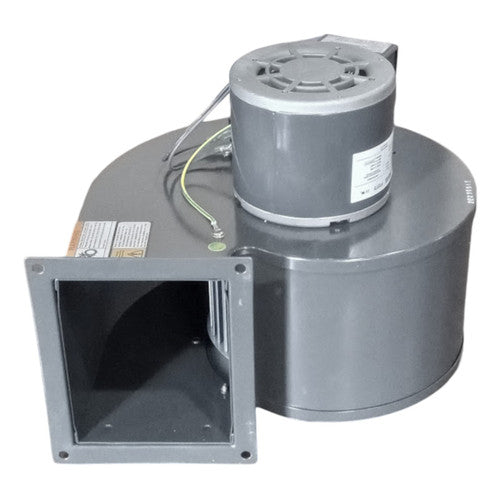

Precision Electric Motor Sales PTDT3 Centrifugal Blower Motor

Product Description

The Precision Electric Motor Sales PTDT3 is a centrifugal blower motor known for its reliable performance. This motor is suitable for all-position mounting applications. It includes features such as automatic overload protection and uses ball bearings for smooth operation. The maximum inlet temperature this motor can handle is one hundred four degrees Fahrenheit.

• Electrical Type: PSC
• Rotation Speed: 1450 RPM
• Overload Protection: Automatic

Product Highlights

The PTDT3 motor offers energy-efficient operation and is built to meet industry standards, making it suitable for HVAC and other applications.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: PTDT3

Technical Specifications

• Electrical Type: PSC
• CFM: 559
• HP: 1/10
• RPM: 1450
• Voltage: 230 V
• Overload Protection: Automatic
• Bearings: Ball
• Mounting Type: All Position
• Amperage: 0.98 A
• Insulation Class: B
• Outlet Flange Bolt Hole Dimensions: 6 x 5 inches
• Max Inlet Temperature: 104 degrees Fahrenheit
• Certifications: cULus Approved
