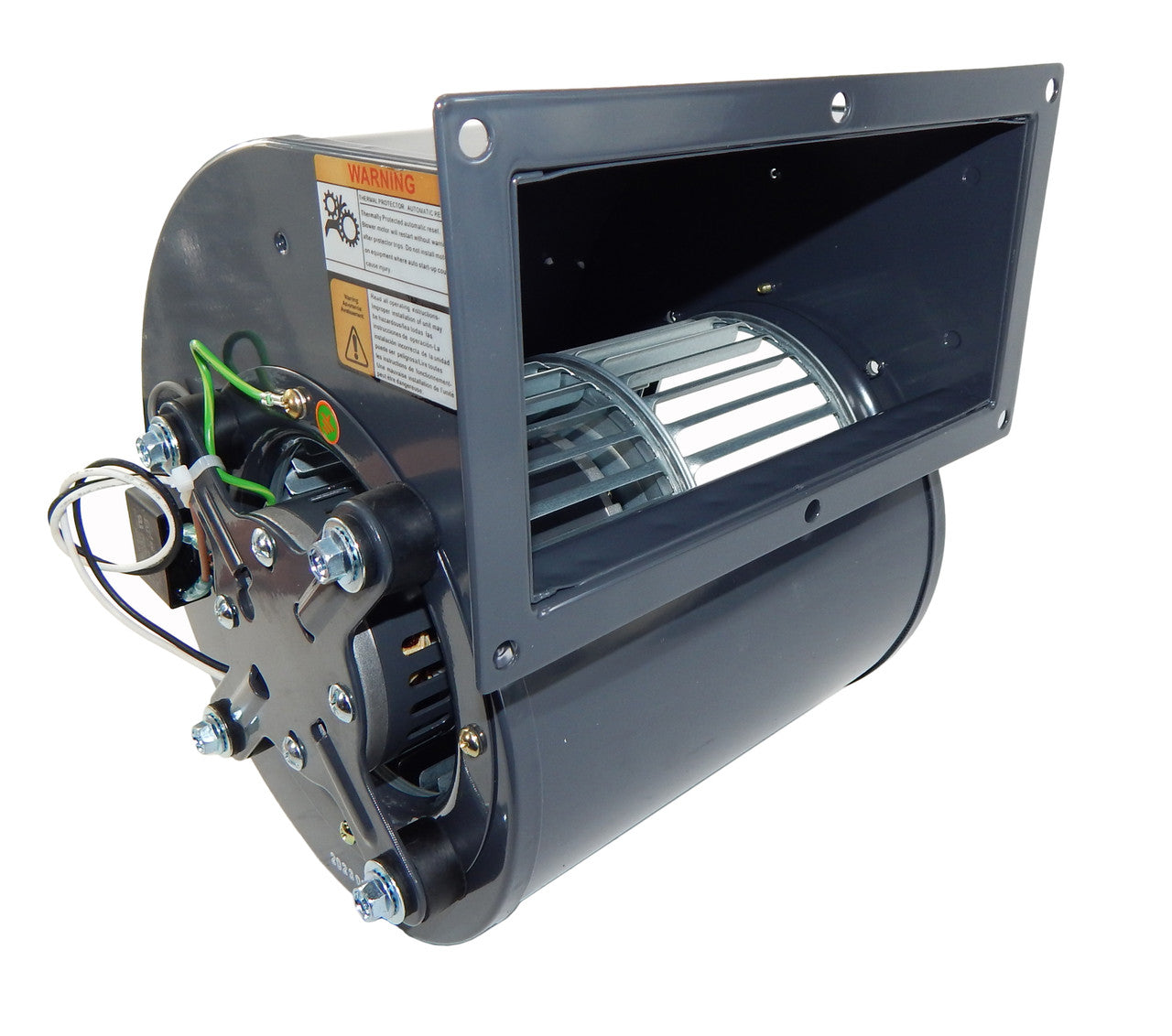

PRECISION ELECTRIC MOTOR SALES PTDR9 Centrifugal Blower

Product Description

The PRECISION ELECTRIC MOTOR SALES PTDR9 is a centrifugal blower suitable for various applications. This unit acts as a direct OEM interchange replacement for discontinued Dayton models including 4C448 and 1TDR9. Operating at 115 volts, it utilizes a permanent split capacitor motor to provide a maximum airflow of four hundred sixty-three CFM at one thousand five hundred sixty RPM.

• Functions as a direct OEM replacement for Dayton 4C448 and 1TDR9 blowers.
• Includes automatic overload protection and is cULus approved for safety.
• Constructed with a painted steel housing and features ball bearings for easy installation.

Product Highlights

This blower is designed for reliable operation in various settings, with all-position mounting capabilities. A capacitor is included with the unit, ensuring optimal function. It is non-reversible and not meant for speed control.

Product Information

Standard Information

• Brand: PRECISION ELECTRIC MOTOR SALES
• MPN: PTDR9

Technical Specifications

• HP: 1/15 HP
• Voltage: 115 VOLTS
• Amps: 1.28 AMPS
• RPM: 1560 RPM
• Airflow: 463 CFM
• Motor Type: PSC Motor
• Bearings: Ball Bearing
• Insulation Class: B
• Max Inlet Temp: 104°F
• Mounting: All Positions
• Overload Protection: Automatic
• Capacitor: Included
• Approval: cULus Approved
• Housing Material: Painted Steel
• Outlet Flange Bolt Hole Dimensions: 8-7/8 x 4-3/8
• Wheel Diameter: 5-1/8
• Reversibility: Non Reversible
• Speed Control: Not recommended for speed control
