Precision Electric Motor Sales PTDR7 Centrifugal Blower 1/12 HP 115 Volts

Product Description

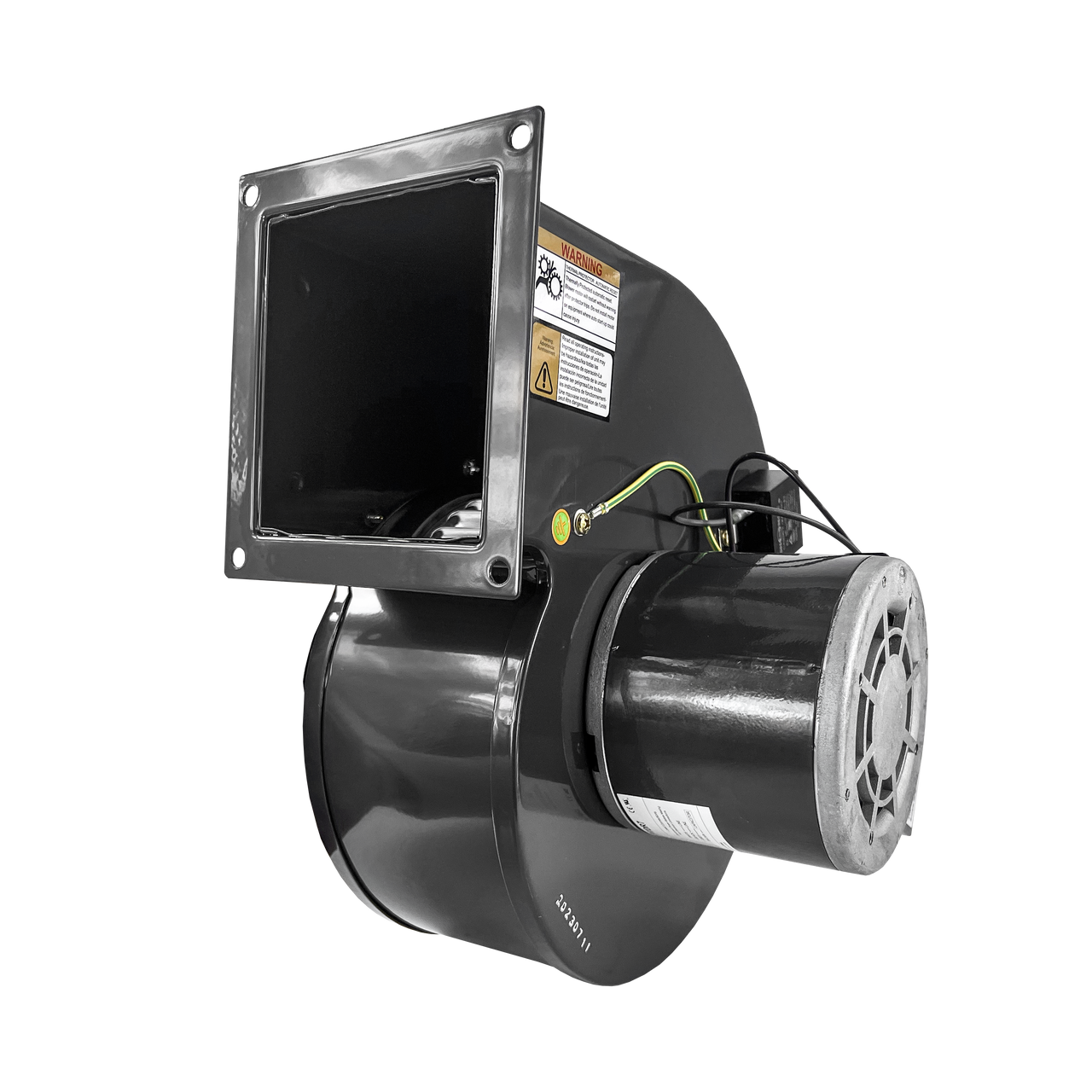

The Precision Electric Motor Sales PTDR7 is designed for various air movement tasks. This centrifugal blower operates on a 115-volt power supply and has a 1/12 HP Permanent Split Capacitor motor. It reaches a rotational speed of 1650 RPM. The blower offers reliable performance with features such as automatic overload protection and Class B insulation.

• Features a 1/12 HP PSC motor with ball bearings for smooth operations.
• Operates on 115 volts at 1.35 amps, providing efficient airflow.
• Includes automatic overload protection, Class B insulation, and an airflow capacity of 485 CFM.

Product Highlights

The PTDR7 stands out with its high airflow capacity and versatile mounting options, making it ideal for different environments.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• Approval: cULus Approved

Technical Specifications

• HP: 1/12 HP
• Volts: 115 VOLTS
• Amps: 1.35 AMPS
• RPM: 1650 RPM
• Overload Protection: Automatic
• Insulation Class: B
• Max Inlet Temp: 104°F
• Bearing Type: Ball Bearing
• CFM: 485 CFM
• Mounting: All Positions
• Motor Type: PSC Motor
• Capacitor: Included
• Conduit Box: Included
• Wheel Diameter: 6-1/8 inches
