Precision Electric Motor Sales PTDR5 1TDR5, 2C069 Dayton Direct OEM Interchange Replacement Blower

Product Description

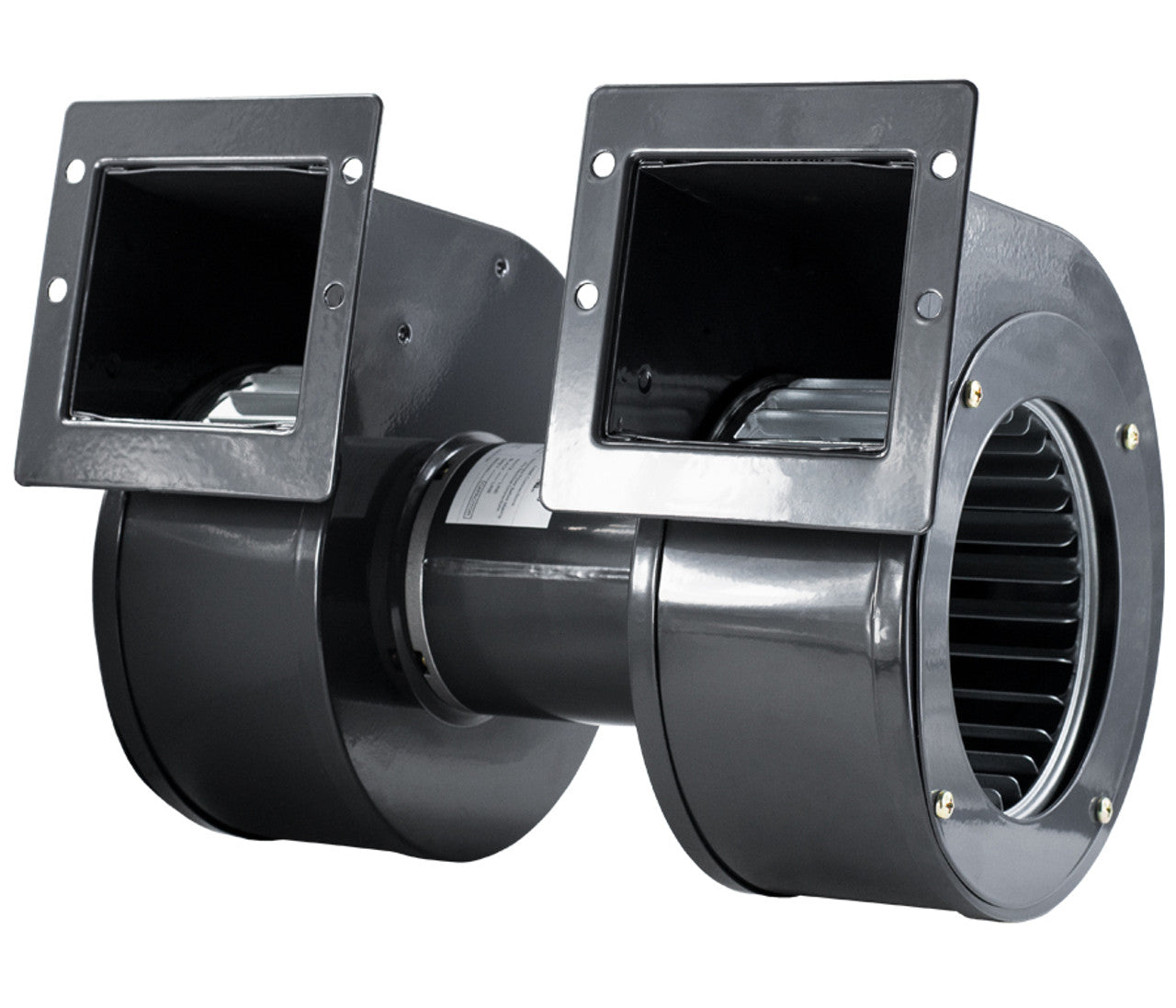

The Precision Electric Motor Sales PTDR5 is a centrifugal blower designed as a direct OEM interchange replacement for Dayton Blower models 1TDR5 and 2C069. This unit includes a permanent split capacitor (PSC) motor with an included capacitor and features automatic overload protection. It operates at 115 volts and delivers a maximum airflow of three hundred twelve CFM at one thousand three hundred eighty RPM.

• Functions as a direct OEM aftermarket replacement for Dayton 1TDR5 and 2C069 blowers.
• Equipped with a PSC motor, automatic overload protection, and cULus approval.
• Provides three hundred twelve CFM maximum airflow, operates at one thousand three hundred eighty RPM, 115 volts, and zero point seventy-six amps.

Product Highlights

This blower is designed for various mounting positions and is suitable for applications that require consistent airflow. It can operate with a maximum inlet temperature of one hundred four degrees Fahrenheit.

Product Information

Standard Information

• Country of Origin: China
• Weight: twelve lbs

Technical Specifications

• HP: one over forty
• Voltage: 115 volts
• Amps: zero point seventy-six amps
• RPM: one thousand three hundred eighty RPM
• Max Airflow: three hundred twelve CFM
• Insulation Class: B
• Max Inlet Temp: one hundred four degrees Fahrenheit
• Bearing Type: ball bearing
• Motor Type: PSC motor
• Mounting: all positions
• Reversibility: non-reversible
• Safety Approvals: cULus approved
• Conduit Box: included
• Capacitor: included
• Speed Control Recommendation: not recommended for speed control
• Power Cord/Switch: blower has no power cord or switch
