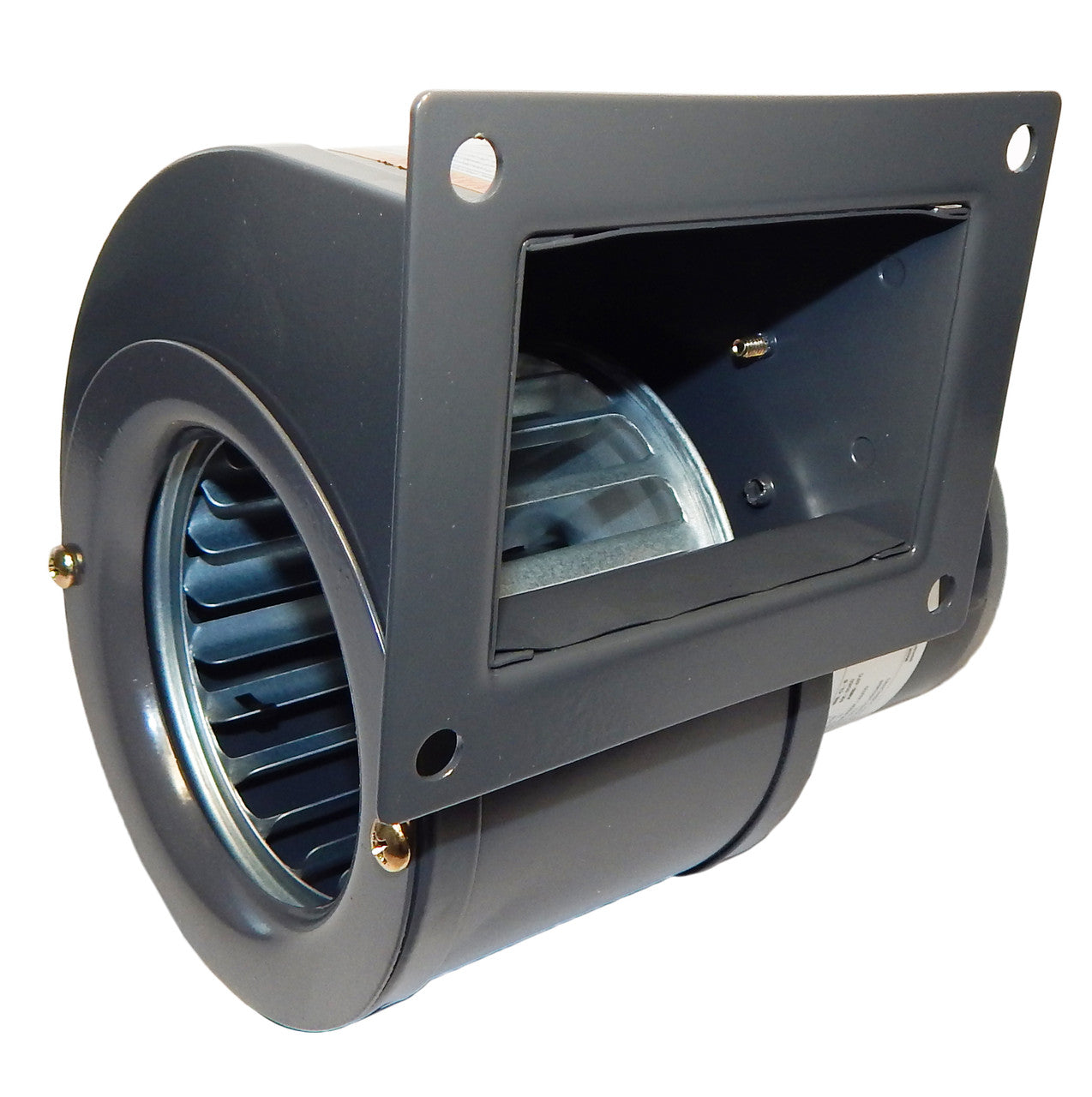

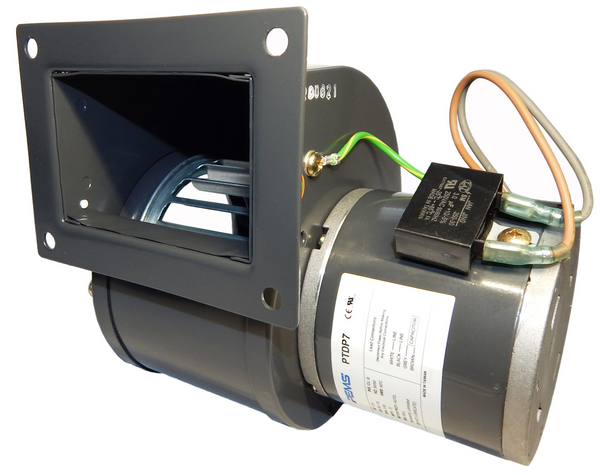

PRECISION ELECTRIC MOTOR SALES PTDP7 Rectangular Blower

Product Description

The PRECISION ELECTRIC MOTOR SALES PTDP7 is a versatile rectangular blower suitable for various applications. This blower features a PSC motor and automatic overload protection, ensuring safe operation. It operates at one hundred fifteen volts and sixty to fifty hertz, providing a maximum airflow of one hundred forty-six CFM at three thousand one hundred RPM. The blower is designed for all-position mounting and includes a conduit box for easy installation. Certified with cULus, it also has Class B insulation for added safety.

• Maximum airflow of one hundred forty-six CFM
• Operates at one hundred fifteen volts and three thousand one hundred RPM
• Includes automatic overload protection and painted steel housing

Product Highlights

Efficient blower for various environments with easy installation options.

Product Information

Standard Information

• Brand: PRECISION ELECTRIC MOTOR SALES
• MPN: PTDP7

Technical Specifications

• Max Airflow: 146 CFM
• RPM: 3100
• Current: .75 amps
• Input Voltage: 115 Volts
• Frequency: 60/50Hz
• Mounting Type: All Position
• Bearings: Ball Bearings
• Max Inlet Temperature: 104F
• Outlet Flange Bolt Hole Dimension: 4 x 2-7/8
• Overload Protection: Automatic
• Certifications: cULus Approved
• Housing Material: Painted Steel
• Insulation Class: B
• Motor Type: PSC
• Reversible: Non Reversible
• Speed Control: Not recommended
