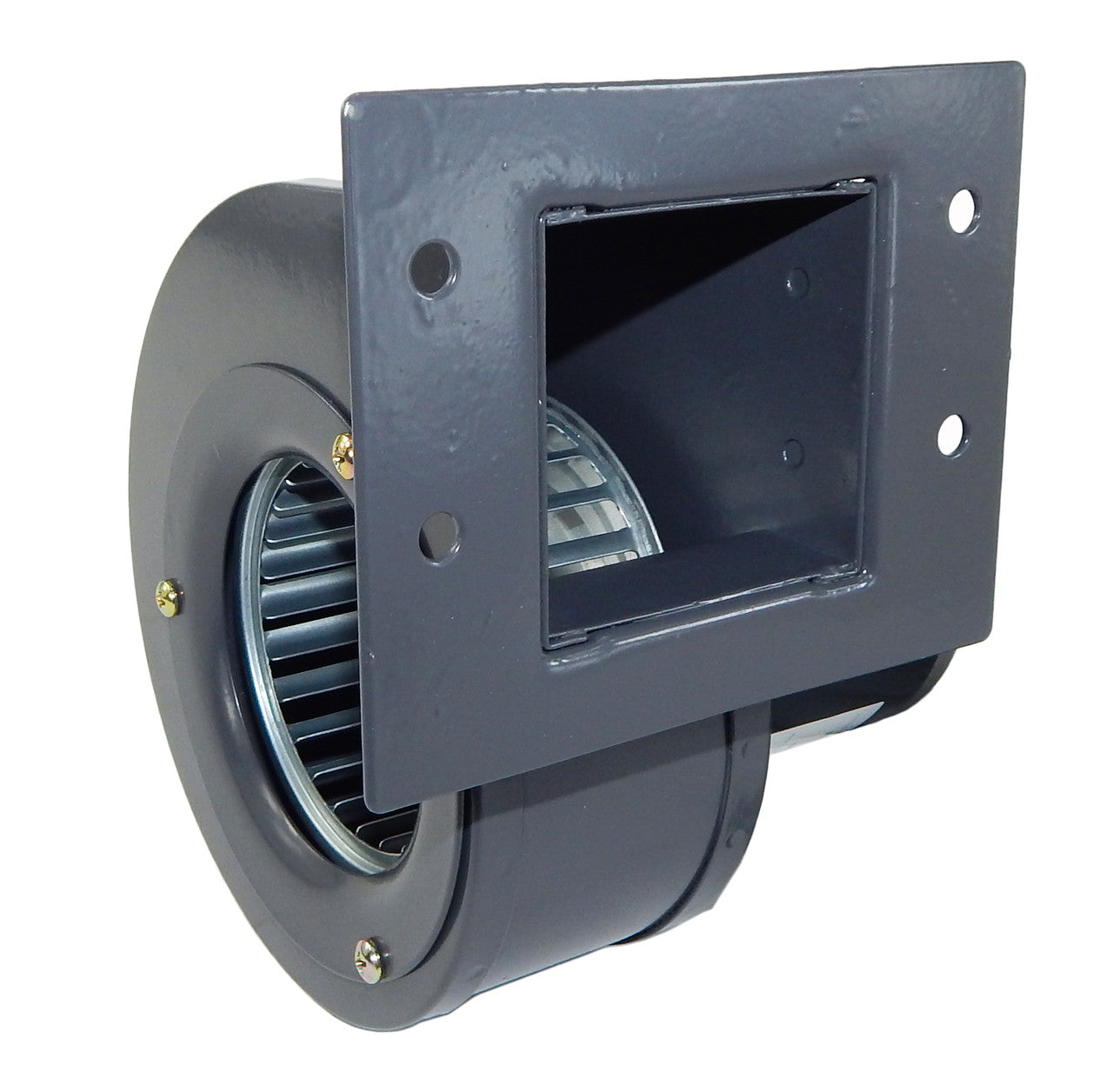

Precision Electric Motor Sales PTDP6 PSC Motor 1/30 HP 230 Volts

Product Description

The Precision Electric Motor Sales PTDP6 is a Permanent Split Capacitor motor designed for centrifugal blower applications. This motor efficiently operates on 230 volts, providing 1/30 horsepower while drawing only 0.33 amps. With a rotational speed of 2880 RPM, it ensures effective air movement. The PTDP6 features automatic overload protection and ball bearings for improved durability and consistent operation. It has cULus approval for safety compliance and comes with an integrated capacitor and conduit box for easy electrical connections. It is versatile with a mounting design that accommodates all positions, making it suitable for various installations.

• Features automatic overload protection and ball bearings for durability.
• Operates on 230 volts with a low current draw of 0.33 amps.
• Includes capacitor and conduit box, cULus approved, suitable for all-position mounting.

Product Highlights

The PTDP6 is engineered for efficient air movement in a variety of applications.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: PTDP6

Technical Specifications

• HP: 1/30 HP
• Volts: 230 Volts
• Amps: 0.33 Amps
• RPM: 2880 RPM
• Overload Protection: Automatic
• Insulation Class: B
• Max Inlet Temperature: 104°F
• Bearing Type: Ball Bearing
• CFM: 133 CFM
• Mounting: All Positions
• Motor Type: PSC Motor
• Capacitor: Included
• Conduit Box: Included
• cULus Approval: Approved
• Wheel Diameter: 3-3/4 inches
• Screw Size-Pitch: M5-0.80
