Precision Electric Motor Sales PTDN7 Centrifugal Blower 115 Volts Replacement MPN

Product Description

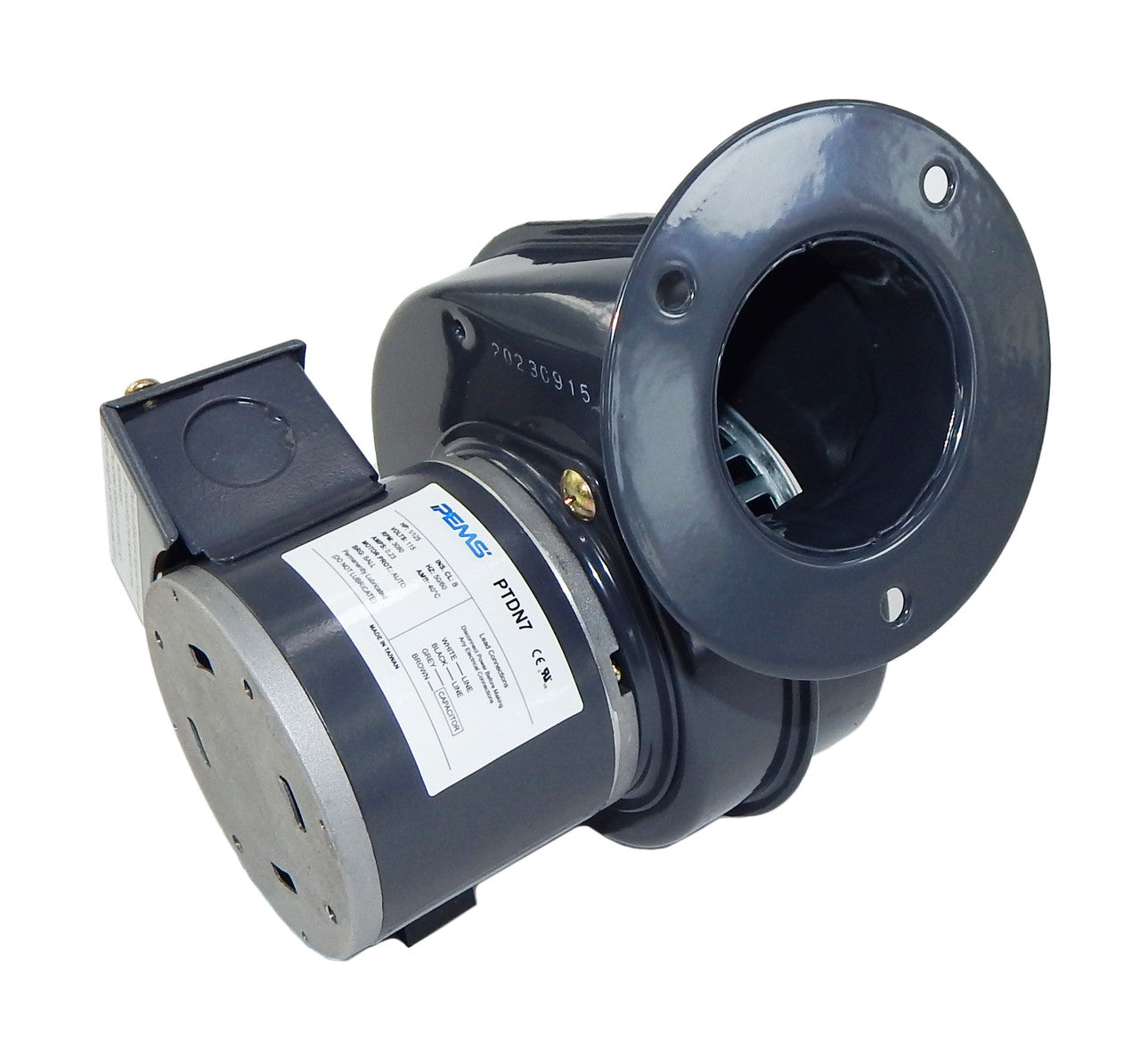

The Precision Electric Motor Sales PTDN7 is a centrifugal blower designed to efficiently move air in various applications. With a PSC motor and automatic overload protection, this unit operates on 115 volts and draws a current of 0.23 amps. It achieves a speed of 3080 RPM and delivers an airflow of 50 CFM. The product is equipped with ball bearings to ensure consistent performance and has received cULus approval for safety standards.

• Operates on 115 volts with 0.23 amps and features automatic overload protection.
• Includes a PSC motor with ball bearings and a wheel diameter of three inches.
• Delivers 50 CFM of airflow and is approved by cULus for safety and performance.

Product Highlights

This blower is suitable for a variety of installations. It supports all mounting positions and comes with a capacitor and a conduit box. The insulation class B allows for a maximum inlet temperature of 104 degrees Fahrenheit, making it versatile for different environmental conditions.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: PTDN7

Technical Specifications

• HP: 1/125
• Volts: 115
• Amps: 0.23
• RPM: 3080
• Overload Protection: Automatic
• Insulation Class: B
• Max Inlet Temp: 104 degrees Fahrenheit
• Bearing Type: Ball Bearing
• CFM: 50
• Mounting: All Positions
• Motor Type: PSC
• Capacitor: Included
• cULus Approved: Yes
• Conduit Box: Included
• Wheel Diameter: 3 inches
