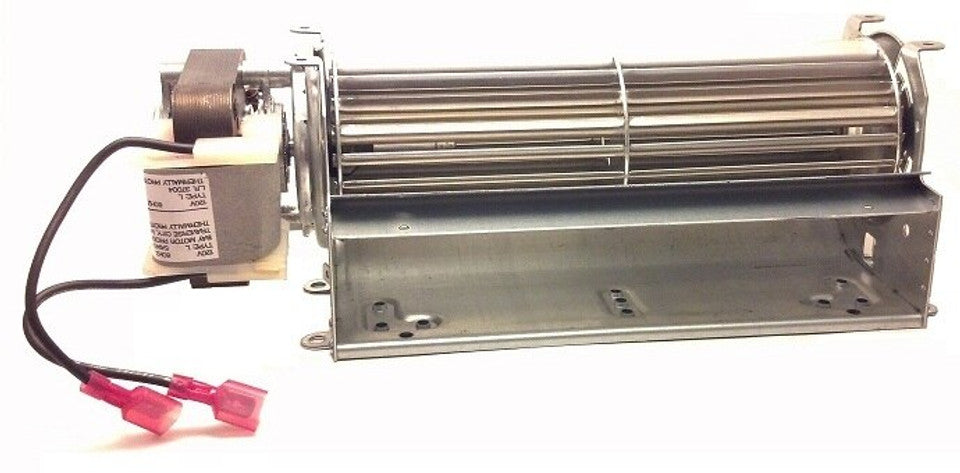

Precision Electric Motor Sales P61L180B Transflow / Crossflow Blower Assembly

Product Description

The Precision Electric Motor Sales P61L180B is a Transflow and Crossflow Blower Assembly tailored for fireplace systems. This blower improves heat distribution, adding warmth and comfort to your living space. It is engineered for high-temperature settings and is compatible with multiple fireplace models that require a Class H unit.

• Operates at 115 volts and uses 0.70 amps of current.
• Achieves an airflow of 110 CFM (Cubic Feet per Minute) and a speed of 1800 RPM.
• Includes sleeve bushings for effective operation.

Product Highlights

This blower integrates seamlessly with upper-mounted fan units and includes a power cord for easy installation.

Product Information

Standard Information

• Model: P61L180B
• Type: Transflow/Crossflow Blower Assembly

Technical Specifications

• Airflow: 110 CFM
• RPM: 1800
• Amperage: 0.70 Amps
• Voltage: 115 Volts
• Rotation Direction: Counterclockwise (CCW)
• Bushings: Sleeve
• Insulation Class: Class H
• Dimensions: Height: 3.25 inches, Width: 3.75 inches, Overall Length: 9.75 inches, Discharge Opening: 7.125 inches x 1.375 inches
