Precision Electric Motor Sales P5H73598-2

Product Description

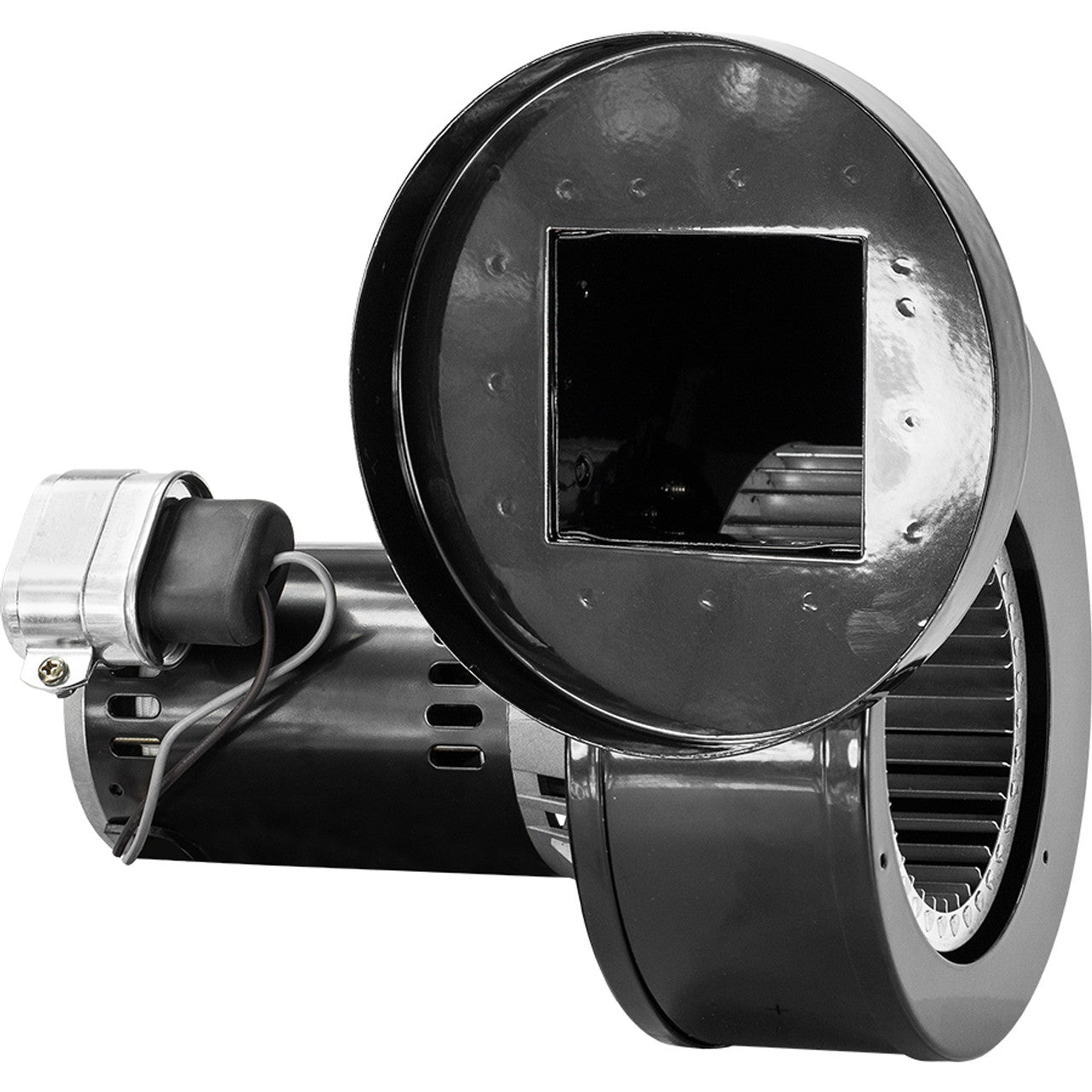

The Precision Electric Motor Sales P5H73598-2 is an OEM replacement flue exhaust blower designed for Modine systems. This PSC motor has a power output of one over fifteen horsepower and operates within a voltage range of two hundred eight to two hundred thirty volts, drawing zero point four amps. It includes automatic overload protection for improved safety during operation.

• Designed for Modine systems
• Includes automatic overload protection
• CULus approved for safety

Product Highlights

This blower motor is suitable for continuous operation at three thousand fifty RPM and features ball bearings for smooth functionality.

Product Information

Standard Information

• Country of Origin:
• UPC:

Technical Specifications

• HP: 1/15 HP
• Voltage: 208-230 Volts
• Amperage: 0.40 Amps
• RPM: 3050 RPM
• Overload Protection: Automatic Overload Protection
• Insulation Class: B
• Ambient Temperature: 40°C AMB
• Frequency: 50/60 HZ
• Bearing Type: Ball Bearing
• Motor Type: PSC Motor
• Approval: cULus Approved
• Capacitor: Included
• Flange Size: 6.1 inches
