Precision Electric Motor Sales P4086 Motor for Williams Wall Furnace 1/30 HP P062101

Product Description

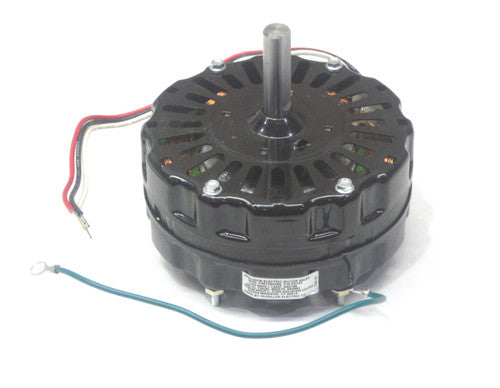

The Precision Electric Motor Sales P4086 is a replacement motor designed for Williams and Sears wall furnaces. This motor operates at one hundred fifteen volts and one point seven amps. It provides one-thirtieth horsepower at one thousand fifty RPM. The motor is thermally protected and features counter-clockwise rotation when viewed from the shaft end. It can replace several motor part numbers including P062101, P151101, A0510B2105, and others.

• Replacement fan motor for wall furnaces
• Compatible with Williams and Sears models
• Two-speed operation

Product Highlights

This replacement motor ensures reliable performance in wall furnaces, helping maintain optimal heating efficiency.

Product Information

Standard Information

• Input Voltage: 115 Volts
• Output Current: 1.7 Amps

Technical Specifications

• RPM: 1050
• Horsepower: 1/30
• Rotation: CCW as viewed from shaft end
• Shaft Dimensions: 1/2 x 2 inches with flat
• Motor Diameter: 5 inches
• Bolt Spacing: 2-3/8 inches apart x 4 inches apart
• Protection: Thermally protected
