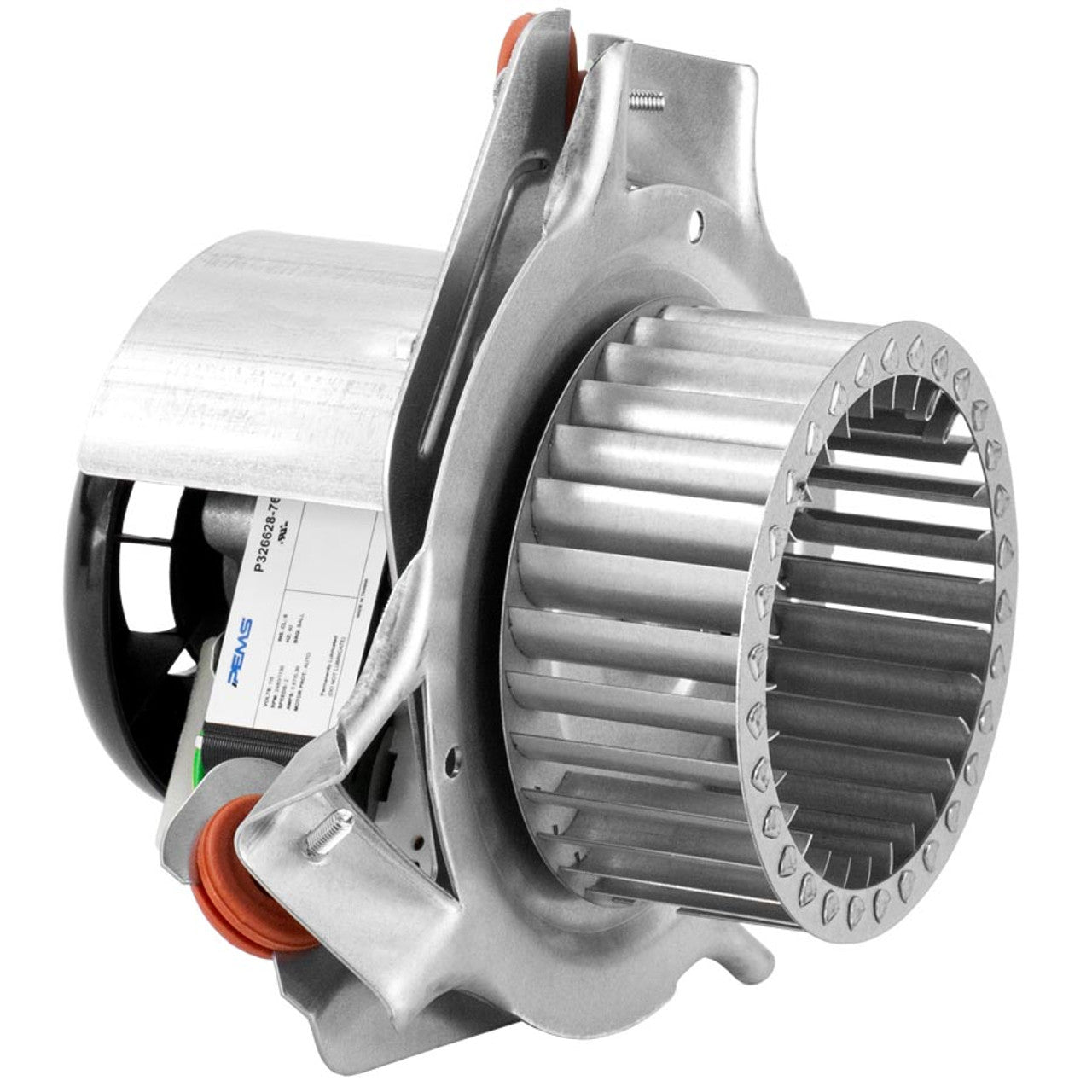

Precision Electric Motor Sales P326628-761 Carrier Replacement Blower

Product Description

The Precision Electric Motor Sales P326628-761 is a reliable replacement blower for Carrier flue exhaust applications. This motor operates at one hundred fifteen volts and features dual-speed operation, allowing for performance at two thousand four hundred eighty or one thousand one hundred thirty revolutions per minute with current ratings of zero point six seven and zero point three zero amps. The C-frame style and shaded pole design contribute to its durability and efficiency.

• Two-speed operation with RPM ratings of 2480 and 1130
• Includes automatic overload protection for enhanced safety
• cULus approved for compliance with safety standards

Product Highlights

This motor provides efficient operation suitable for various flue exhaust tasks, featuring robust design elements such as ball bearings for stability and Class B insulation for thermal resistance.

Product Information

Standard Information

• HP: 1/70 HP
• Volts: 115 Volts

Technical Specifications

• Amps: 0.67/0.30 Amps
• RPM: 2480/1130 RPM
• Speed: 2 Speed
• Overload Protection: Automatic Overload Protection
• Insulation Class: Class B
• Ambient Temperature: 40°C
• Hz: 60 Hz
• Bearing Type: Ball Bearing
• Motor Type: Shaded Pole
• Shaft End Rotation: CW Shaft End Rotation
• Frame Style: C-Frame Style Motor
• Approvals: cULus Approved
