Precision Electric Motor Sales L-20-3 Levelling Yoke

Product Description

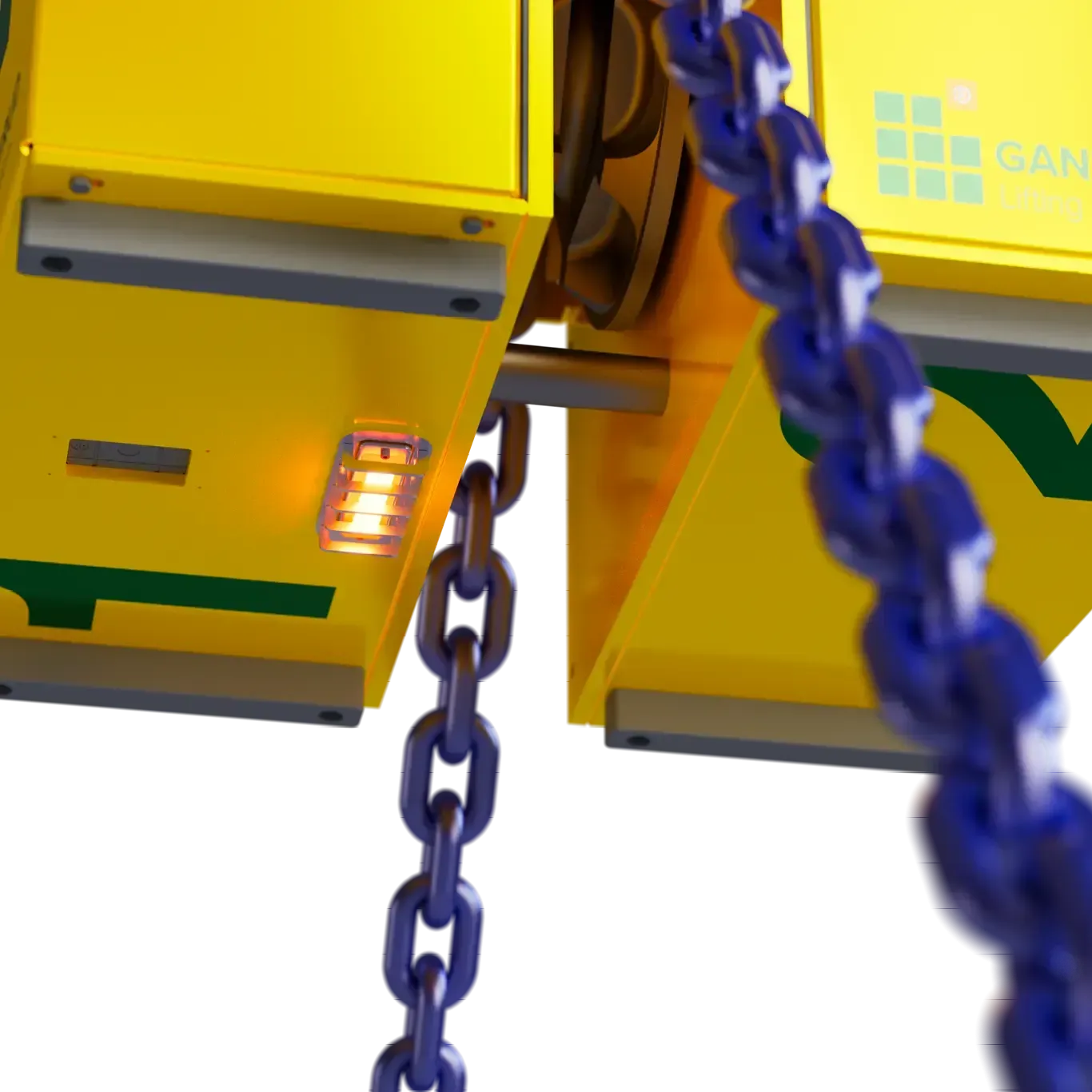

The Precision Electric Motor Sales L-20-3 Levelling Yoke is designed for precise load management. It features an innovative auto-levelling function that identifies the center of gravity effectively. This device is suitable for heavy items thanks to its built-in snatch block function and a released chain wheel.

• Auto-levelling function for accurate surface alignment
• Snatch block function enhances load handling
• Operates in temperatures ranging from -20 degrees Celsius to +40 degrees Celsius

Product Highlights

This levelling yoke is electrically operated and comes with a radio remote control for user convenience, making it ideal for varied lifting tasks.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: L-20-3

Technical Specifications

• Lifting capacity: Max twenty tonnes
• Load imbalance capacity: Max three tonnes
• Max leveling length: three meters
• Max chain angle: sixty degrees
• Chain dimension: sixty point five by twenty millimeters
• Total chain length: six meters
• Weight: three hundred ninety-five kilograms

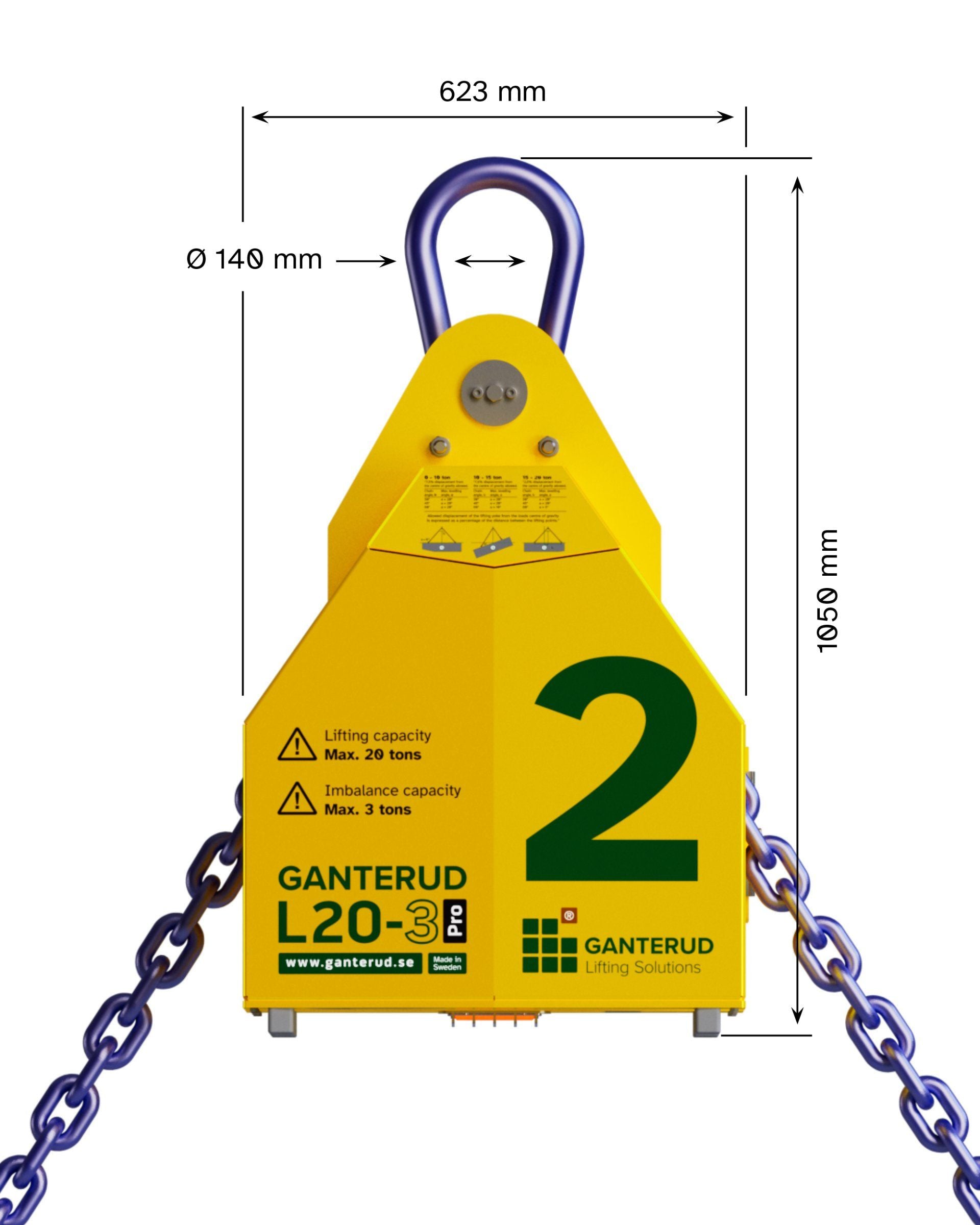

• Height: one thousand fifty millimeters

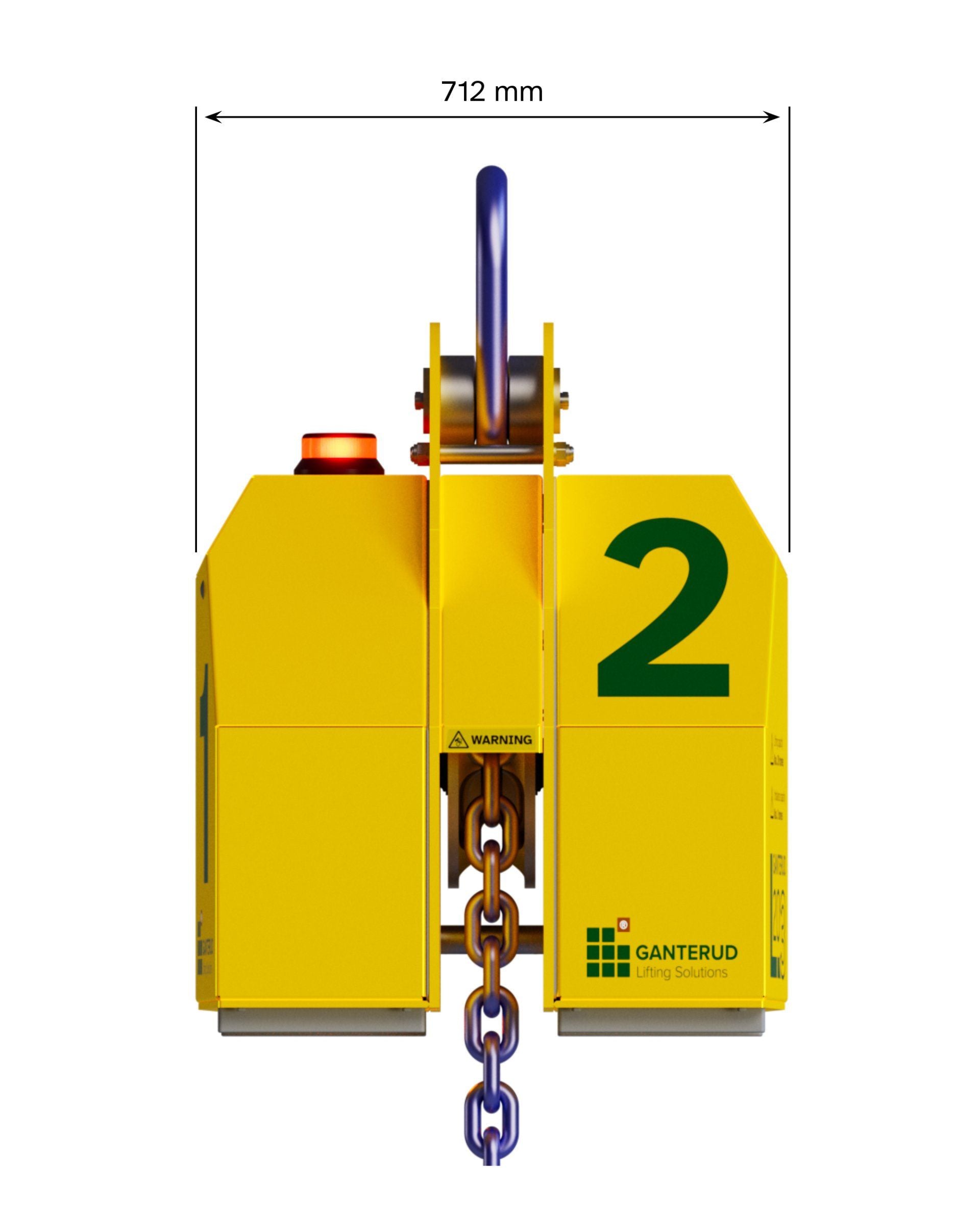

• Width: seven hundred nineteen millimeters
• Depth: six hundred twenty-three millimeters
• Radio range: one hundred meters unobstructed
• Current electrical motor: twenty-four VDC
• Power at rest: fifty mA
• Power max continuous: sixty A
• Power peak: one hundred A
• Operating temperature: -20 degrees Celsius to +40 degrees Celsius
• Storage temperature: -20 degrees Celsius to +45 degrees Celsius
• Relative Humidity (RH): 0 - 90 % when stored
• IP rating: IP65

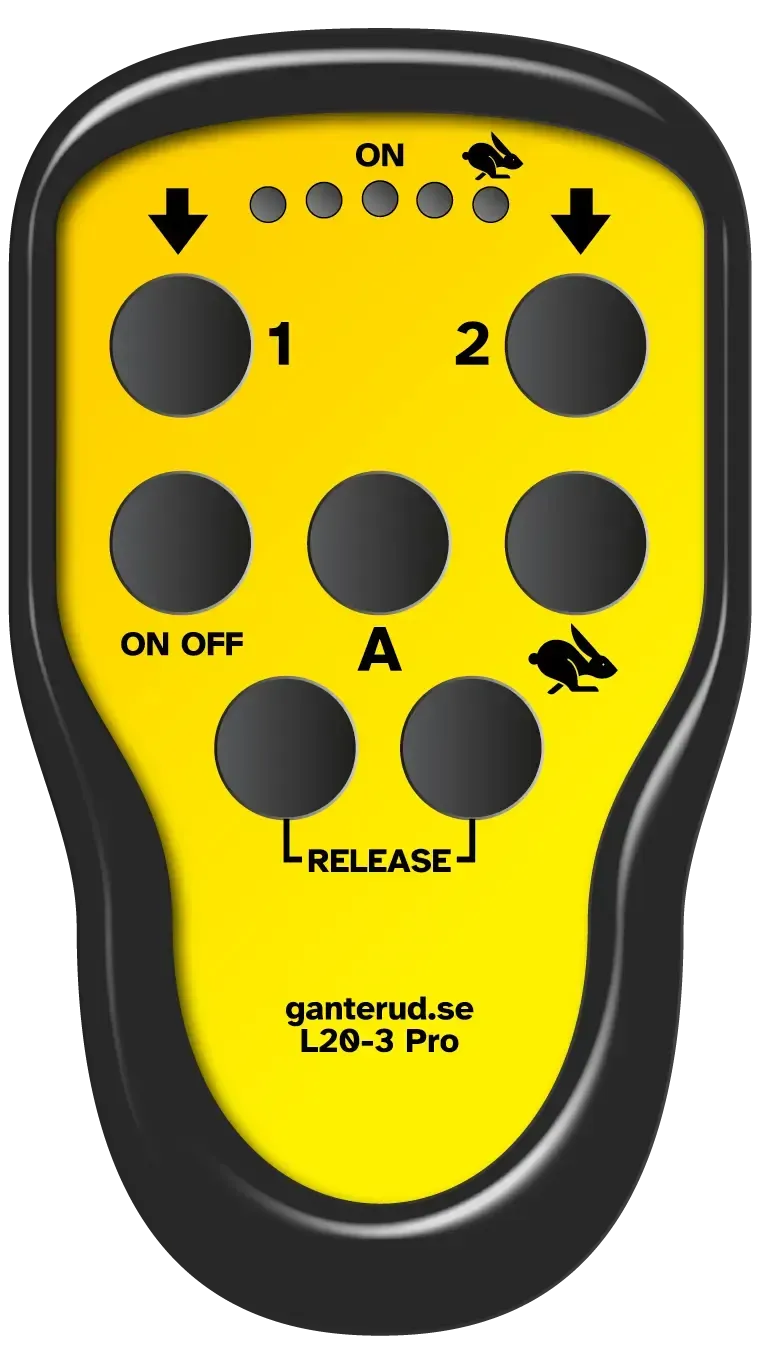

• Number of function keys: seven
• Power output: ten mW
• Power supply: three by one point five V AAA
• Hand-held controller IP rating: IP67
