Precision Electric Motor Sales K01531-A300 PMDC Motor

Product Description

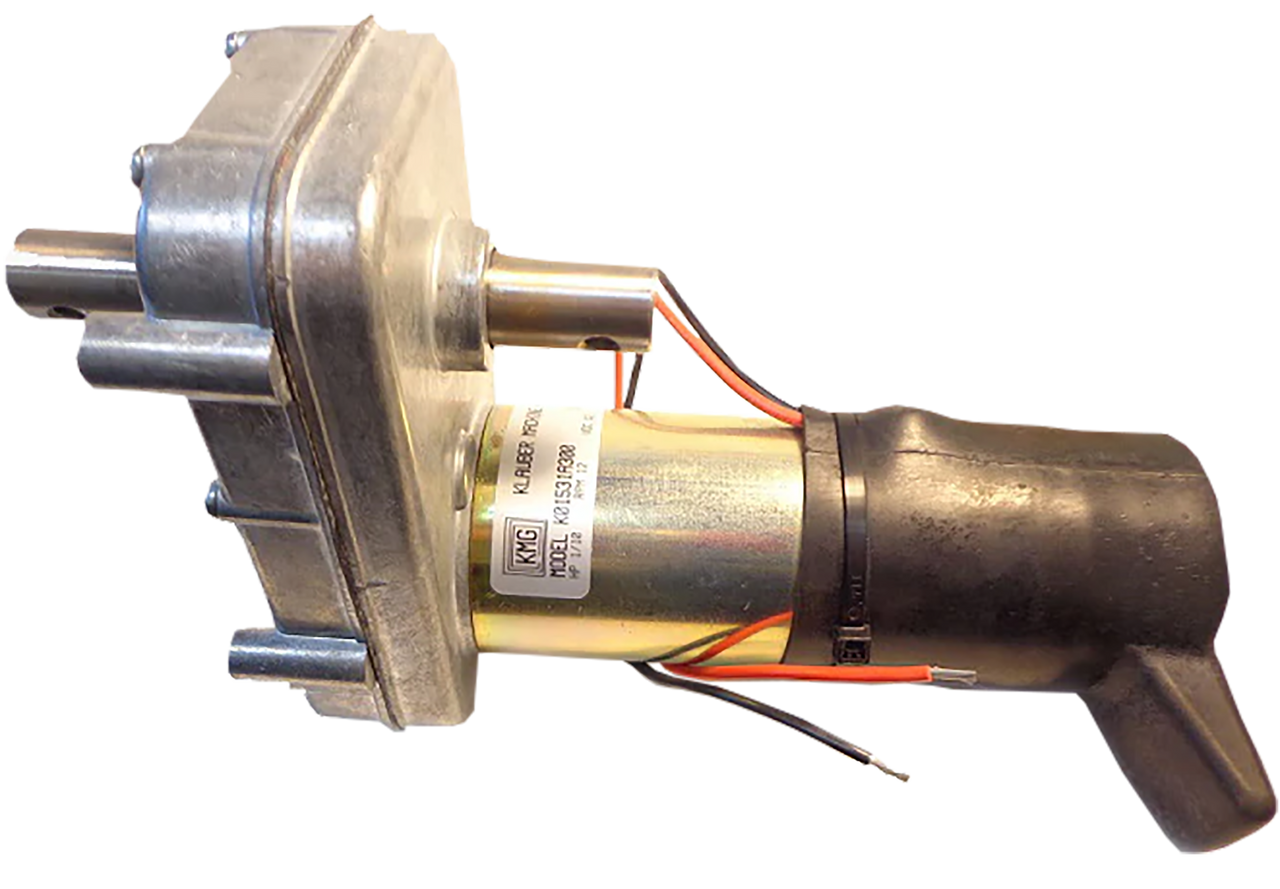

The Precision Electric Motor Sales K01531-A300 PMDC Motor is a permanent magnet gear-motor suitable for various applications, including RV power gear slide outs. It operates at twelve VDC and features a durable construction with a cast aluminum gear housing and a steel motor frame. Equipped with an electro-mechanical brake and a manual release lever, this motor ensures safe operation. Metal internal gears enhance durability and performance.

• Designed for intermittent duty with reversible rotation.
• Features a four-bolt face mount for easy installation.
• Suitable for demanding applications with significant torque requirements.

Product Highlights

This motor is built for long-lasting performance in challenging conditions.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• Country of Origin: USA

Technical Specifications

• MPN: K01531-A300
• Voltage: 12 VDC
• Speed: 6 RPM @ 850 in-lbs, 25 Amps; 10 RPM @ 400 in-lbs, 13 Amps; 12 RPM (no load)
• Torque: 850 in-lbs
• Holding Torque: 500 in-lbs
• Rotation: Reversible
• Duty: Intermittent
• Enclosure: TENV
• Mount: Four bolt face mount on 3.38 x 3.38 centers
• Shafts: Dual shafts 3/4 diam. x 1-1/4 with 1/4 cross hole (no keyway)
• Internal Gears: Metal
