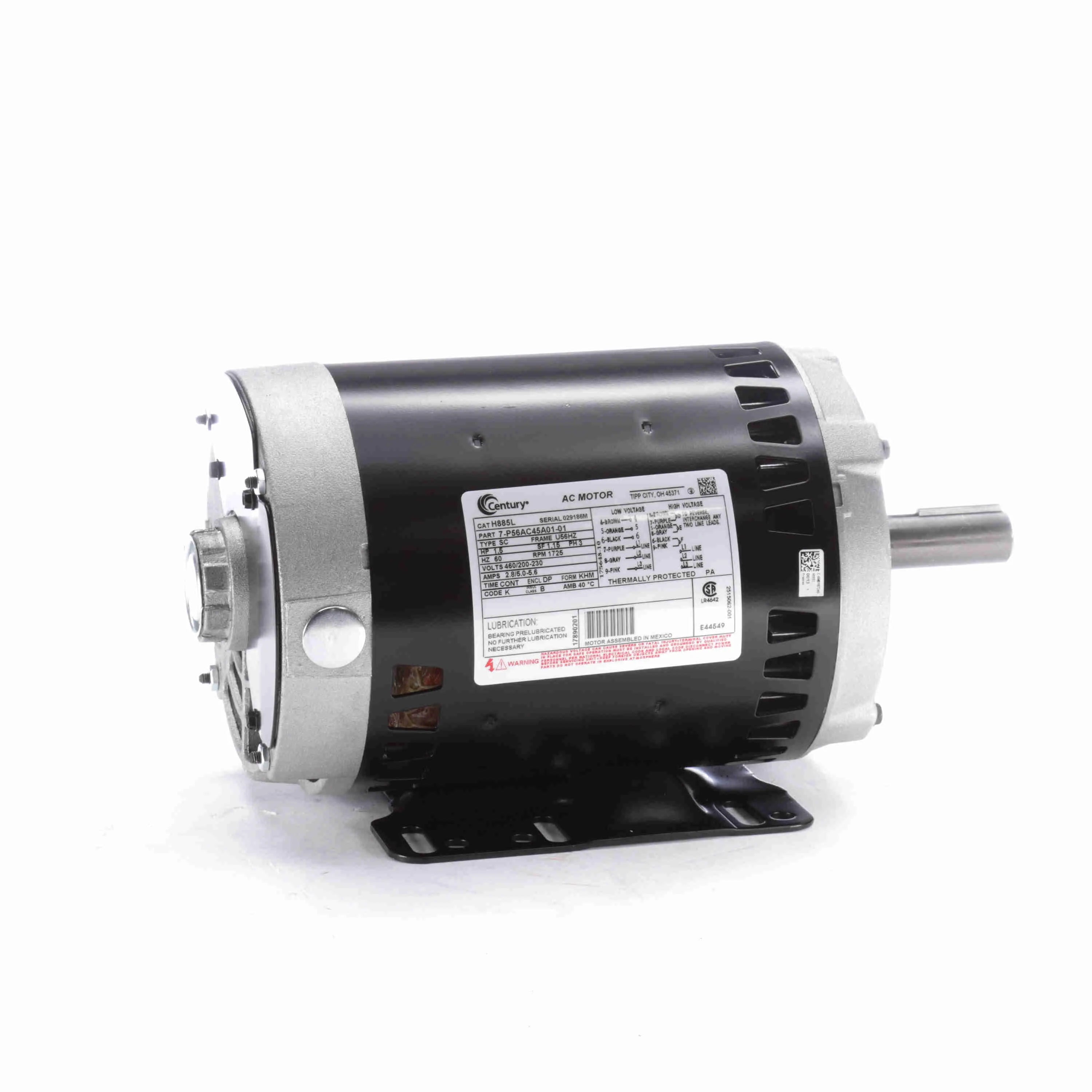

Precision Electric Motor Sales H885L Century General Purpose Motor 1.5 HP (460/200-230 V)

Product Description

The PRECISION ELECTRIC MOTOR SALES H885L Century General Purpose Motor is a 1.5 HP motor operating at 460/200-230 V. This motor is designed for continuous duty and features a rigid base for mounting. It has a speed of 1725 RPM and is thermally protected. Suitable for various applications requiring a reliable power source.

• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Heavy-duty, rolled steel construction ensures motor durability.
• Permanently lubricated sealed bearings extend the lifetime of the motor.

Product Highlights

Durable and safe, this motor is ideal for applications needing a robust and certified power solution.

Product Information

Standard Information

• Brand: PRECISION ELECTRIC MOTOR SALES
• Manufacturer Part Number: H885L
• Country of Origin: Mexico

Technical Specifications

• Phase: 3
• Output HP: 1.5 Hp
• Output KW: 1.1 kW
• Voltage: 460/200-230 V
• Speed: 1725 rpm
• Service Factor: 1.15
• Frame: U56HZ
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Efficiency: 70 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 2.8/5.0-5.6 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• Starting Method: Across The Line
• Poles: 4
• Rotation: Reversible Counterclockwise
• Mounting: Rigid Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 12.81 in
• Frame Length: 7.00 in
• Shaft Diameter: 0.875 in
• Shaft Extension: 2.31 in
• UPC: 786674056481
• Weight: 29.00 LB
• Packaged Length: 16.00 IN
• Packaged Width: 8.00 IN
• Packaged Height: 10.00 IN
• HTC: 8501.52.4000
• Country of Origin: Mexico
