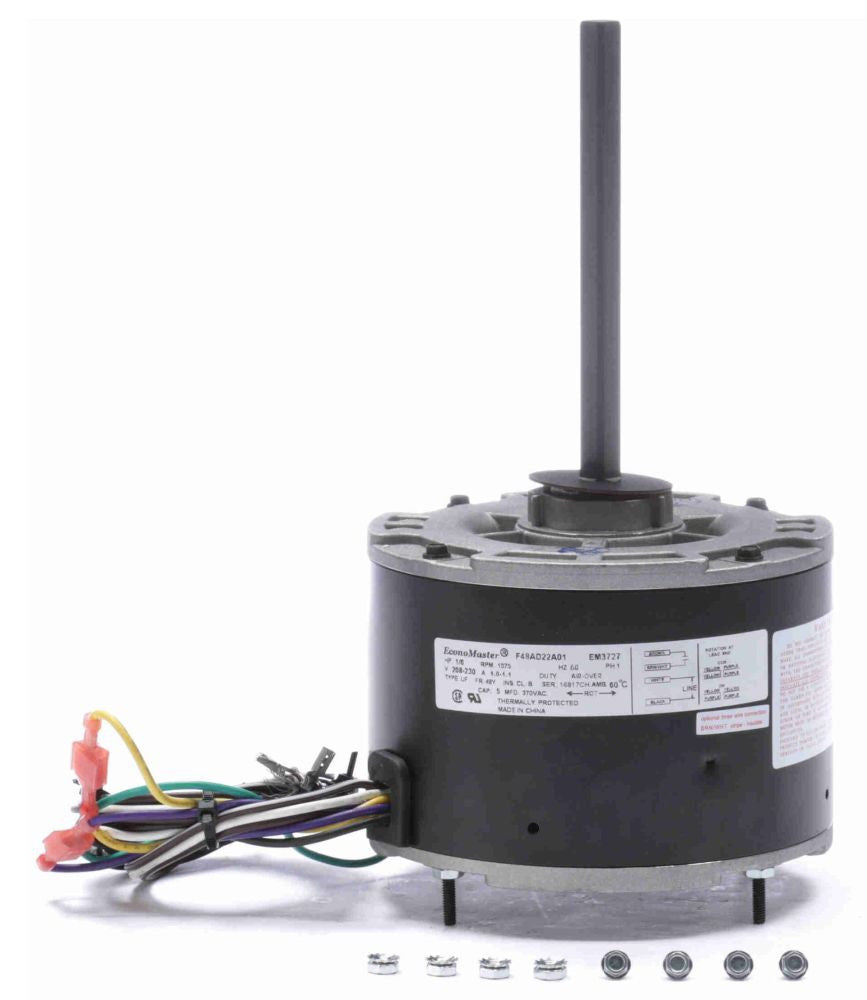

Precision Electric Motor Sales EM3727 Condenser Fan Motor

Product Description

The PRECISION ELECTRIC MOTOR SALES EM3727 is an enclosed condenser fan motor built for single-phase residential and light commercial HVAC condensing units. Rated at 1/6 horsepower and designed to run on 208/230 volts at 60 Hz, it operates at 1075 RPM in a single-speed configuration. The enclosed construction protects internal windings from moisture, dust, and debris common in outdoor condenser applications. Licensed HVAC technicians install this motor as a direct replacement in split-system and packaged condensing units where the original motor has failed or degraded.

This motor fits standard 48-frame condenser fan applications in residential split systems and light commercial packaged equipment. The 208/230-volt dual-voltage rating makes it compatible with both common supply voltages found in North American installations. It is intended for outdoor condenser service where an enclosed motor design is required for environmental protection. HVAC technicians replacing a failed condenser fan motor on a rooftop or ground-mounted condensing unit will find the 48-frame footprint common across a wide range of equipment.

Key Features

• Enclosed motor design protects windings in outdoor condenser environments
• 1/6 HP output suitable for standard residential and light commercial condenser fan duty
• Dual-voltage rating: 208/230 volts accommodates varied supply voltages
• 1075 RPM single-speed operation for consistent airflow across the condenser coil
• NEMA 48 frame for broad dimensional compatibility with existing motor mounts

Compatibility

Designed as an OEM-style replacement for enclosed condenser fan motor applications requiring a NEMA 48 frame, 1/6 HP, 1075 RPM, single-phase, 208/230-volt motor in residential or light commercial condensing units.

Installation Notes

Installation should be performed by a licensed HVAC technician following all applicable local codes and NEC requirements. Disconnect and lock out power to the condensing unit before removing the existing motor or handling any electrical connections. Verify shaft length, rotation direction, and mounting configuration match the original motor before completing the installation. Do not energize the unit until all wiring connections are secure and the fan blade is properly torqued and seated on the shaft.

Technical Specifications

• Horsepower: 1/6 HP
• Voltage: 208/230 volts
• Phase: 1-phase
• Frequency: 60 Hz
• Speed: 1075 RPM
• Number of Speeds: 1
• Frame: NEMA 48
• Enclosure: Enclosed

Standard Information

• Brand: PRECISION ELECTRIC MOTOR SALES
• Manufacturer Part Number: EM3727
