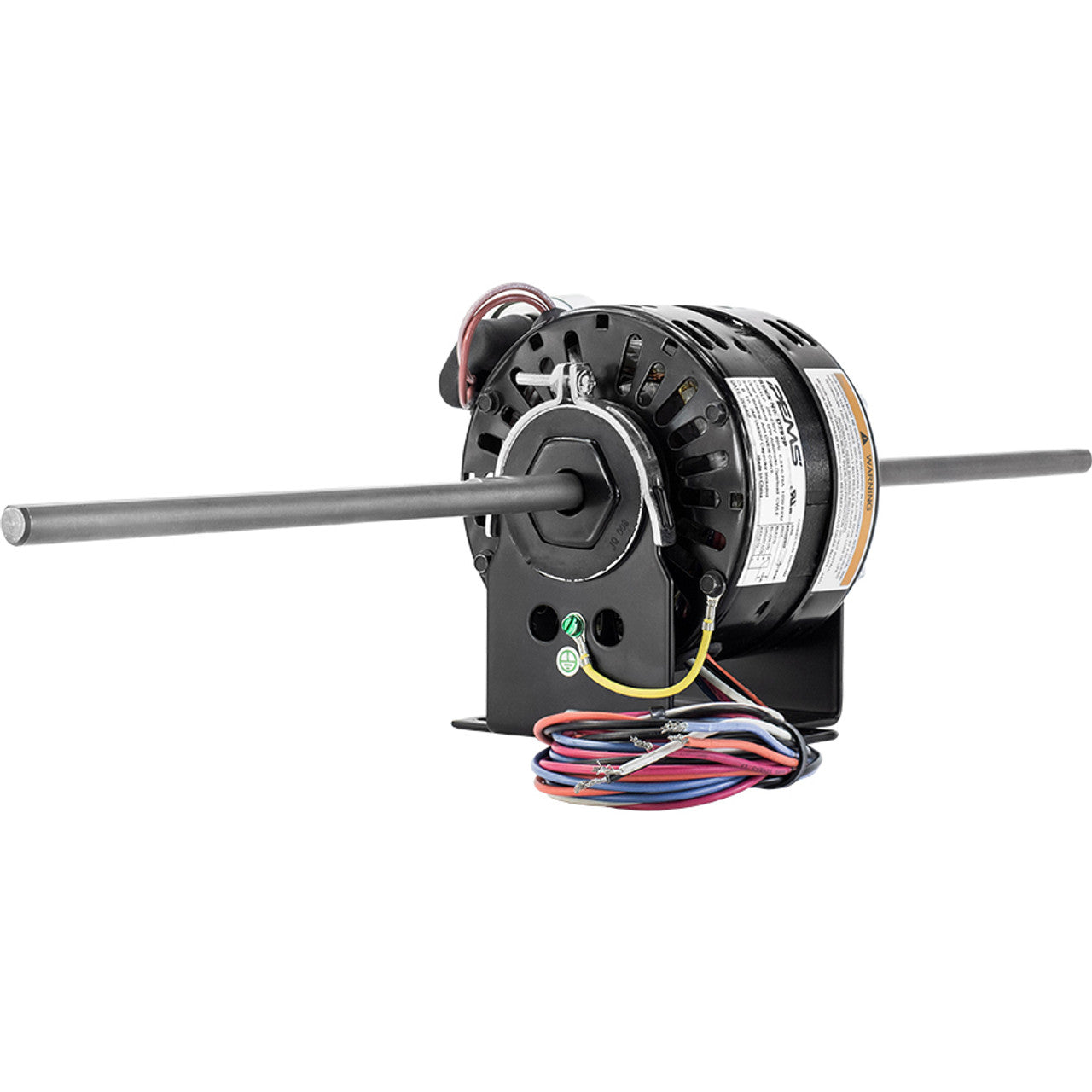

Precision Electric Motor Sales D292P Fan Coil AC/Heating Blower Motor

Product Description

The Precision Electric Motor Sales D292P is a PSC electric motor ideal for fan coil and AC/heating blowers. This motor serves as a direct OEM replacement. It has a power rating of 1/10 horsepower and operates at a speed of 1050 RPM across four different speeds.

• Rated at 1/10 HP with 1050 RPM and four-speed options.
• Operates on 208-230 volts with an amperage range of 0.84-0.79 amps.
• Constructed with a durable resilient base mount and sleeve bearings.

Product Highlights

This motor includes thermal protection for safety and is cULus approved, ensuring reliable operation in a variety of settings.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: D292P

Technical Specifications

• HP: 1/10
• RPM: 1050
• Speeds: 4
• Volts: 208-230
• Amps: 0.84-0.79
• Enclosure: Open Ventilated Air Over
• Shaft Dimensions: 10.67 x 1/2 x 10.73
• Diameter: 5 inches
• Mounting: Resilient Base Mount
• Bearings: Sleeve Bearings
• Motor Type: PSC Motor
• Thermal Protection: Thermally Protected
• Frequency: 60 Hz
• Insulation Class: B
• Ambient Temperature: 40°C
• Rotation: CWLE
• Frame: 42Y
• Certifications: cULus Approved
• Capacitor Included: Yes
