Precision Electric Motor Sales D291P Fan Coil Motor

Product Description

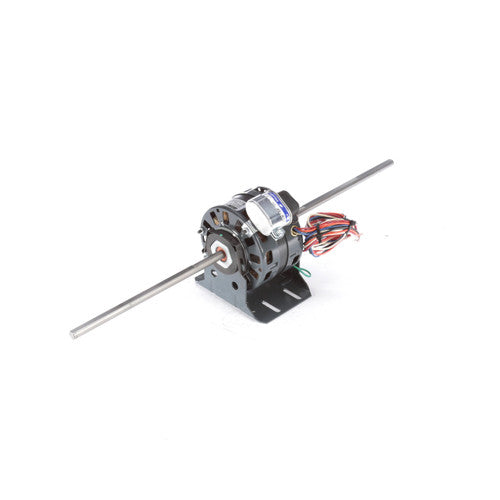

The Precision Electric Motor Sales D291P is a reliable 4-speed, single-phase motor suitable for fan coil, air conditioning, and heating unit applications. This open air over motor features a permanent split capacitor design and operates with a capacitor rated at 4 Mfd-370 Volts. The motor has a frame size of forty-two and includes a resilient base for mounting. It incorporates a double shaft with a diameter of half an inch and flat design, ensuring compatibility with your setup. This motor is thermally protected and uses sleeve bearings for smooth operation.

• Designed for fan coil, air conditioning, and heating units.
• Features a permanent split capacitor design.
• Includes a double shaft with a diameter of half an inch.

Product Highlights

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• Manufacturer Part Number: D291P

Technical Specifications

• Phase: 1
• Output HP: 1/10-1/15-1/25-1/40 Hp
• Output KW: 0.07 kW
• Input Voltage: 115 V
• Speed: 1050 rpm
• Service Factor: 1
• Frame Size: 42
• Enclosure Type: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 2.2/1.4/1.0/0.7 A
• Duty Cycle: Continuous
• Insulation Class: B
• UL Certification: Recognized
• CSA Certification: Y
• CE Certification: N
• Number of Speeds: 4
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Number of Poles: 6
• Rotation: Clockwise Lead End
• Mounting Type: Resilient Base
• Drive End Bearing Type: Sleeve
• Opposite Drive End Bearing Type: Sleeve
• Shaft Type: Flat
• Overall Length: 24.68 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 10.75 inches
