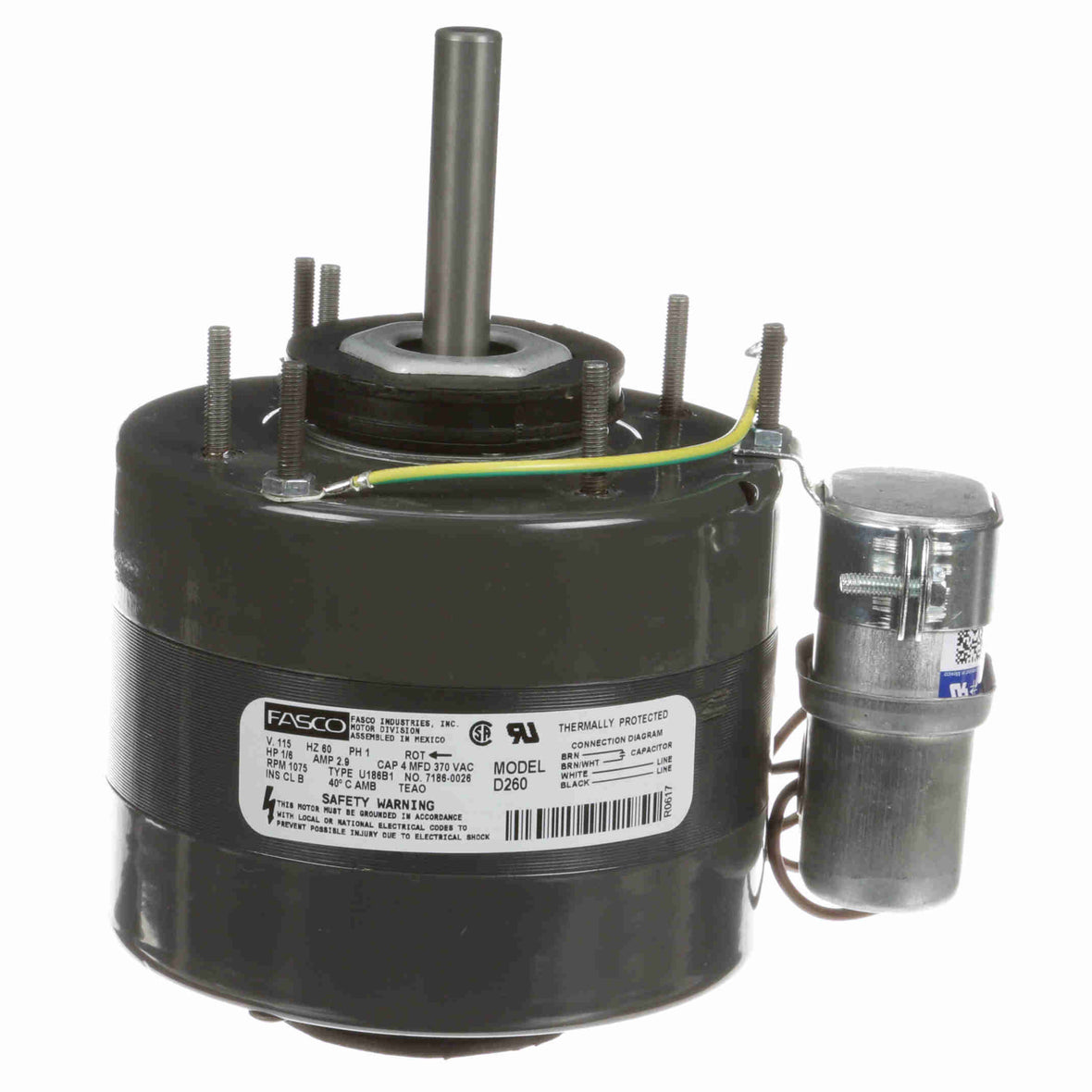

Precision Electric Motor Sales d260 1/6 Hp Psc Motor 42 Frame

Product Description

The PRECISION ELECTRIC MOTOR SALES d260 is a 1/6 HP permanent split capacitor (PSC) electric motor built as an OEM-style replacement for Fasco and PEMS applications. Running at 1075 RPM on a 6-pole configuration, it features a 42 frame form factor with a 5-inch diameter totally enclosed, air-over housing. Class B insulation and thermal protection make it suitable for continuous-duty HVAC blower and fan applications. The sleeve bearing design and resilient ring mounting are standard for retrofit installations where low vibration transmission is required. Licensed HVAC technicians and equipment service professionals handle this type of motor swap during scheduled maintenance or equipment failure response.

This motor is sized for residential and light commercial HVAC applications, including evaporator blower assemblies, condenser fan duty, and OEM blower wheel drives where a 42 frame PSC motor is specified. Its totally enclosed, air-over rating means airflow from the driven equipment provides the necessary cooling, making it appropriate for direct-drive blower installations. The flat shaft and resilient ring mounting match common OEM configurations in forced-air systems.

Key Features

• Permanent split capacitor (PSC) motor type with across-the-line starting
• Totally enclosed, air-over (TEAO) construction for direct-drive blower service
• Class B insulation rated for 40 degrees C ambient operation
• Sleeve bearings on both drive and opposite drive ends for quiet, low-maintenance operation
• Resilient ring mounting to reduce vibration transfer to the cabinet
• Flat shaft with 0.5-inch diameter and 3-inch extension for direct blower wheel coupling

Compatibility

Designed as an OEM-style replacement for Fasco and PEMS 42 frame PSC blower motors in residential and light commercial forced-air HVAC equipment.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the existing motor. Verify capacitor MFD rating compatibility before reusing or replacing the run capacitor, as PSC motors require a matched run capacitor for proper operation. Confirm blower wheel hub bore and set screw position are compatible with the 0.5-inch flat shaft before final assembly.

Technical Specifications

• Horsepower: 1/6 HP
• Speed: 1075 RPM
• Electrical Type: Permanent Split Capacitor (PSC)
• Poles: 6
• Starting Method: Across the Line
• Frame: 42
• Diameter: 5 inches
• Overall Length: 8.04 inches
• Shaft Diameter: 0.5 inches
• Shaft Extension: 3 inches
• Shaft Type: Flat
• Rotation: Clockwise Shaft End
• Mounting: Resilient Rings
• Drive End Bearing: Sleeve
• Opposite Drive End Bearing: Sleeve
• Enclosure: Totally Enclosed Air Over
• Insulation Class: Class B
• Ambient Rating: 40 degrees C
• Thermal Protection: Yes
• Lead Length: 58 inches
• Lead Strip: 0.5 inches

Standard Information

• Brand: PRECISION ELECTRIC MOTOR SALES
• Manufacturer Part Number: d260
