Precision Electric Motor Sales D258A Fan Coil Motor
Availability:
In Stock
Ships same day if ordered by 12 pm
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
- $144.32
- $144.32
- Unit price
- / per
✓
Better Price in Cart
Manufacturer pricing rules prevent us from advertising our discount — no account or email required to see it.
-
Secure Payments
-
Easy Returns
-
Expert Advice
-
Fast Shipping

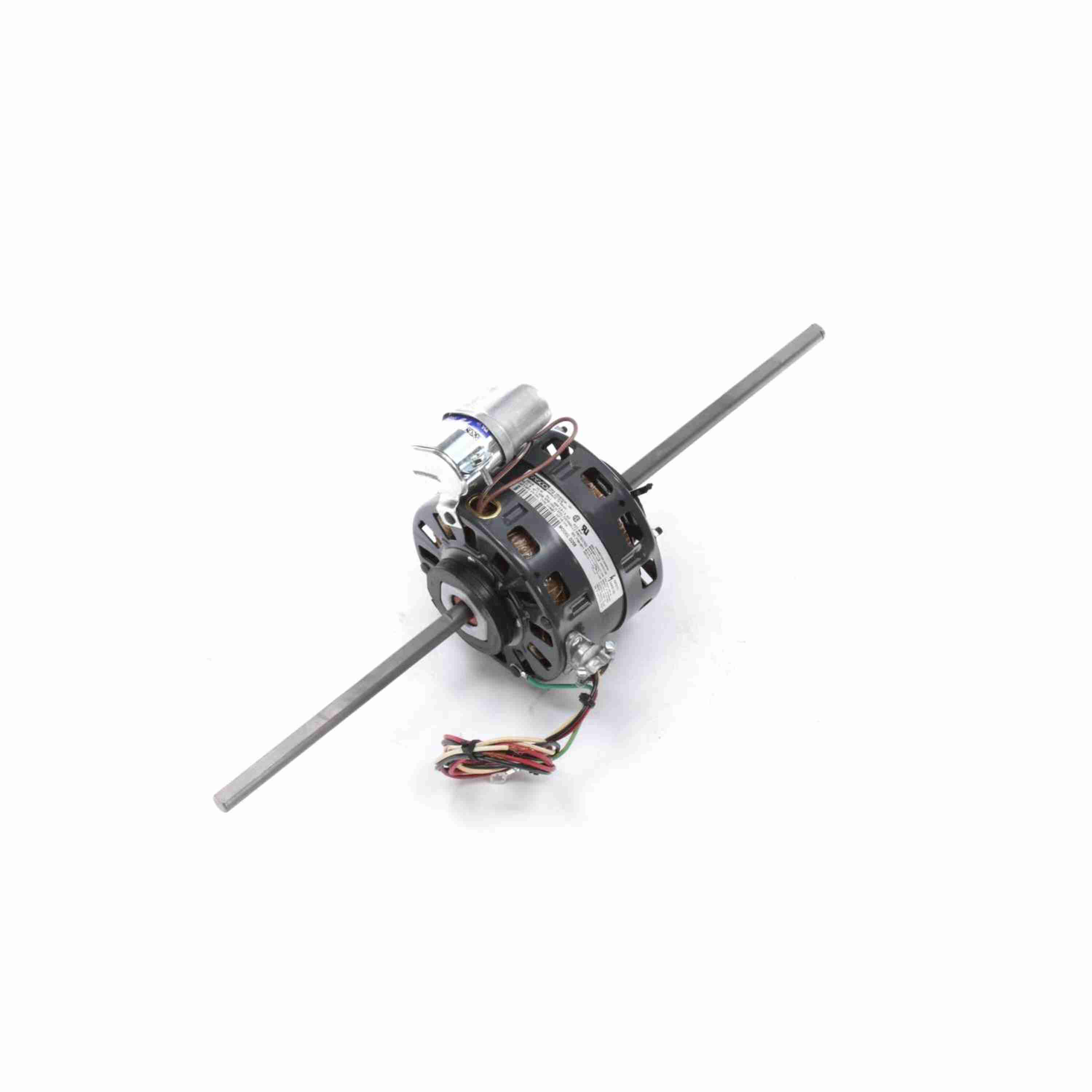

Product DescriptionThe Precision Electric Motor Sales D258A is a single-phase motor designed for use in fan coil, air conditioning, and heating units. This unit operates at two speeds. It features an open air over (OAO) design along with a permanent split capacitor (PSC). A capacitor rated at five microfarads and 370 volts is required for operation. The insulation class is B, and the motor has thermal protection to prevent overheating.
- Single-phase, two-speed operation.
- Permanent split capacitor design for reliability.
- Includes a 0.5-inch diameter double shaft for versatility.
Product Highlights
This motor offers a robust solution for HVAC installations and repairs, ensuring effective air circulation in a variety of heating and cooling applications.Product Information
Standard Information
-
Brand: Precision Electric Motor Sales
-
Manufacturer Part Number: D258A
Technical Specifications
-
Output HP: 1/5, 1/10 Hp
-
Phase: 1
-
Frequency: 60 Hz
-
Input Voltage: 208-230 V
-
Current: 2.8, 1.3 A
-
Speed: 1550 rpm
-
Number of Speeds: 2
-
Poles: 4
-
Enclosure: Open Air Over
-
Insulation Class: B
-
Ambient Temperature: 40 °C
-
Duty: Continuous
-
Rotation: Counterclockwise Lead End
-
Mounting Type: Resilient Rings
-
Frame: 42
-
Frame Material: Rolled Steel
-
Frame Length: 3.83 inches
-
Shaft Type: Flat
-
Shaft Diameter: 0.500 inches
-
Service Factor: 1.0
-
Thermal Protection: Thermally Protected
-
Electrical Type: Permanent Split Capacitor
-
Starting Method: Across The Line
-
Drive End Bearing: Ball
-
Opp Drive End Bearing: Ball
-
Shaft Extension: 7.8X.5X7.8 inches
-
UL: Recognized
-
CSA: Y
-
CE: N
- Single-phase, two-speed operation.
- Permanent split capacitor design for reliability.
- Includes a 0.5-inch diameter double shaft for versatility.
Product Highlights
This motor offers a robust solution for HVAC installations and repairs, ensuring effective air circulation in a variety of heating and cooling applications.Product Information
Standard Information
- Brand: Precision Electric Motor Sales
- Manufacturer Part Number: D258A
Technical Specifications
- Output HP: 1/5, 1/10 Hp
- Phase: 1
- Frequency: 60 Hz
- Input Voltage: 208-230 V
- Current: 2.8, 1.3 A
- Speed: 1550 rpm
- Number of Speeds: 2
- Poles: 4
- Enclosure: Open Air Over
- Insulation Class: B
- Ambient Temperature: 40 °C
- Duty: Continuous
- Rotation: Counterclockwise Lead End
- Mounting Type: Resilient Rings
- Frame: 42
- Frame Material: Rolled Steel
- Frame Length: 3.83 inches
- Shaft Type: Flat
- Shaft Diameter: 0.500 inches
- Service Factor: 1.0
- Thermal Protection: Thermally Protected
- Electrical Type: Permanent Split Capacitor
- Starting Method: Across The Line
- Drive End Bearing: Ball
- Opp Drive End Bearing: Ball
- Shaft Extension: 7.8X.5X7.8 inches
- UL: Recognized
- CSA: Y
- CE: N
