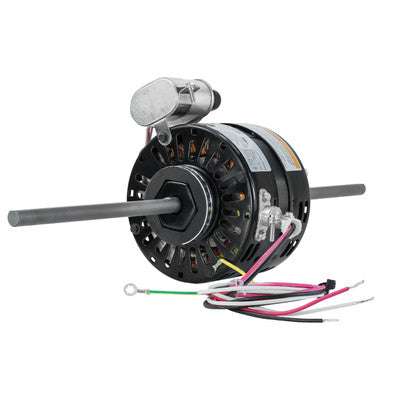

Precision Electric Motor Sales d258 Condenser Fan Motor

Product Description

The PRECISION ELECTRIC MOTOR SALES d258 is a 1/5 HP condenser fan motor rated for 208-230 volt single-phase operation and designed for residential and light commercial HVAC applications. Running at 1550 RPM with a 5.0-inch frame diameter, this motor provides reliable airflow across condenser coils in split-system and packaged air conditioning equipment. With a shipping weight of 10.0 pounds, it is a direct-drive unit suited for replacement work performed by licensed HVAC technicians. The dual-speed capability (1550/2 RPM) allows for flexible staging in systems that require low and high fan speed operation.

This motor is intended for condenser fan applications in split-system air conditioners and heat pumps operating on 208-230 volt power. It fits 5.0-inch CX frame configurations typical in residential condensing units. HVAC technicians performing seasonal maintenance, equipment repair, or full condenser fan motor replacements will find this unit applicable across a range of standard condensing unit configurations that accept this frame size and electrical rating.

Key Features

• 1/5 HP output for standard residential condenser fan duty
• Dual-speed operation at 1550 and 2 RPM for staged airflow control
• 208-230 volt rating compatible with standard single-phase residential power
• 5.0-inch CX frame diameter for direct replacement fitment
• 10.0-pound construction offering solid, durable build quality

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial split-system air conditioners and heat pumps using a 5.0-inch CX frame motor on 208-230 volt single-phase circuits.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the condensing unit before removing the existing motor or handling wiring. Verify that the replacement motor shaft orientation, rotation direction, and mounting configuration match the original unit requirements before energizing. Consult local electrical codes and the equipment manufacturer's wiring diagram when making electrical connections.

Technical Specifications

• Horsepower: 1/5 HP
• Speed: 1550/2 RPM
• Voltage: 208-230 volts
• Frame Diameter: 5.0 inches
• Frame Type: CX
• Weight: 10.0 pounds

Standard Information

• Brand: PRECISION ELECTRIC MOTOR SALES
• Manufacturer Part Number: d258
