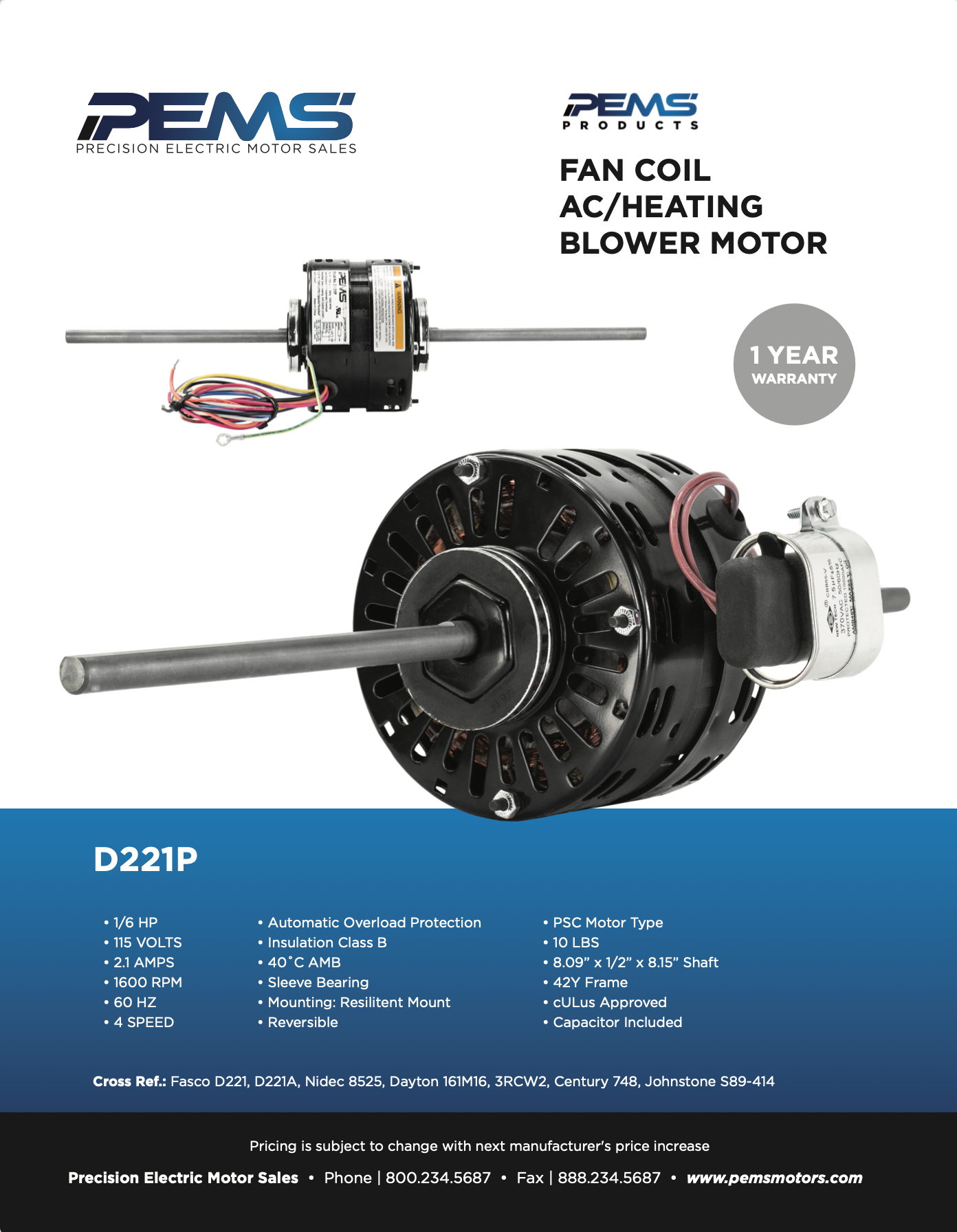

Precision Electric Motor Sales D221P Fan Coil AC/Heating Blower Motor

Product Description

The Precision Electric Motor Sales D221P is a reliable fan coil AC and heating blower motor designed for HVAC systems. This motor operates on 115 volts and draws a current of 2.1 amps while delivering a power output of 1/6 horsepower at a speed of 1600 revolutions per minute. It features four speeds to accommodate various heating and cooling needs and runs at 60 Hz.

• Power output of 1/6 HP at 115 volts and 2.1 amps.
• Offers four speeds with a rotational speed of 1600 RPM.
• Equipped with automatic overload protection and Class B insulation.

Product Highlights

This motor ensures operational safety with its automatic overload protection and complies with safety standards through cULus approval. It comes with a capacitor for easy installation and features a resilient mount for installation flexibility. The D221P also has sleeve bearings, is reversible, and is suitable for diverse HVAC configurations.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: D221P

Technical Specifications

• HP: 1/6
• Volts: 115
• Amps: 2.1
• RPM: 1600
• Hz: 60
• Speeds: 4
• Overload Protection: Automatic
• Insulation Class: B
• Ambient Temperature: 40°C
• Bearing Type: Sleeve Bearing
• Mounting: Resilient Mount
• Reversible: Yes
• Motor Type: PSC
• Shaft Dimensions: 8.09 x 1/2 x 8.15
• Frame: 42Y
• Approval: cULus
• Capacitor: Included
