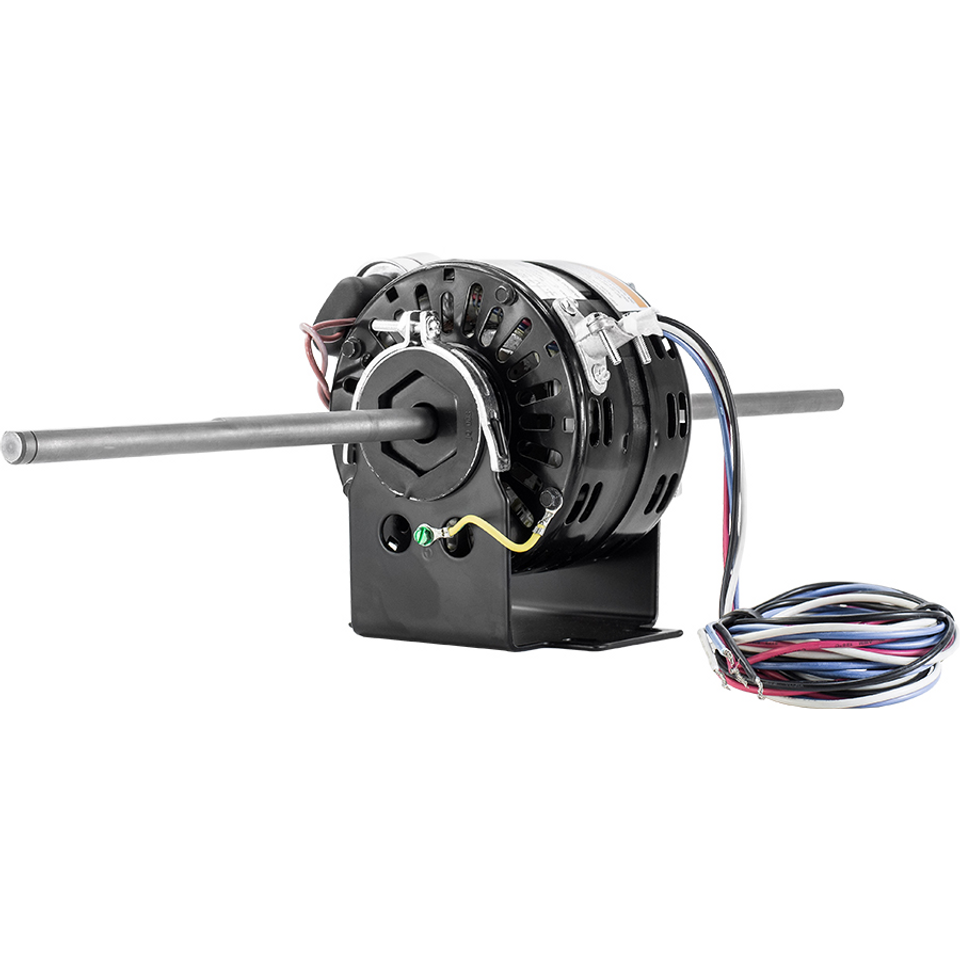

Precision Electric Motor Sales D1055P OEM Replacement Motor

Product Description

The Precision Electric Motor Sales D1055P is an OEM replacement motor designed for single-phase applications. It operates at 115-127V and 60 Hz, providing reliable performance with three-speed settings. The motor has a power output of 1/12 HP, running at 1375 RPM. The construction includes a permanent split capacitor design and thermal protection for enhanced safety.

• Single-phase motor that operates at 115-127V and 60 Hz.
• Delivers power with three-speed functionality at 1375 RPM.
• Includes a 0.5-inch diameter shaft and a resilient base for easy mounting.

Product Highlights

This motor is ideal for applications requiring a robust and efficient performance with thermal protection features.

Product Information

Standard Information

• Country of Origin: Mexico
• Weight: 9.60 LB

Technical Specifications

• Phase: 1
• Output HP: 1/12 Hp
• Input Voltage: 115-127 V
• Speed: 1375 RPM
• Service Factor: 1
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.4 A
• Duty: Continuous
• Insulation Class: B
• UL Certification: Recognized
• CSA Certification: Y
• CE Certification: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 4
• Rotation: Clockwise Shaft End
• Mounting Type: Resilient Base
• Drive End Bearing: Sleeve
• Overall Length: 21.77 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 9.125 in
