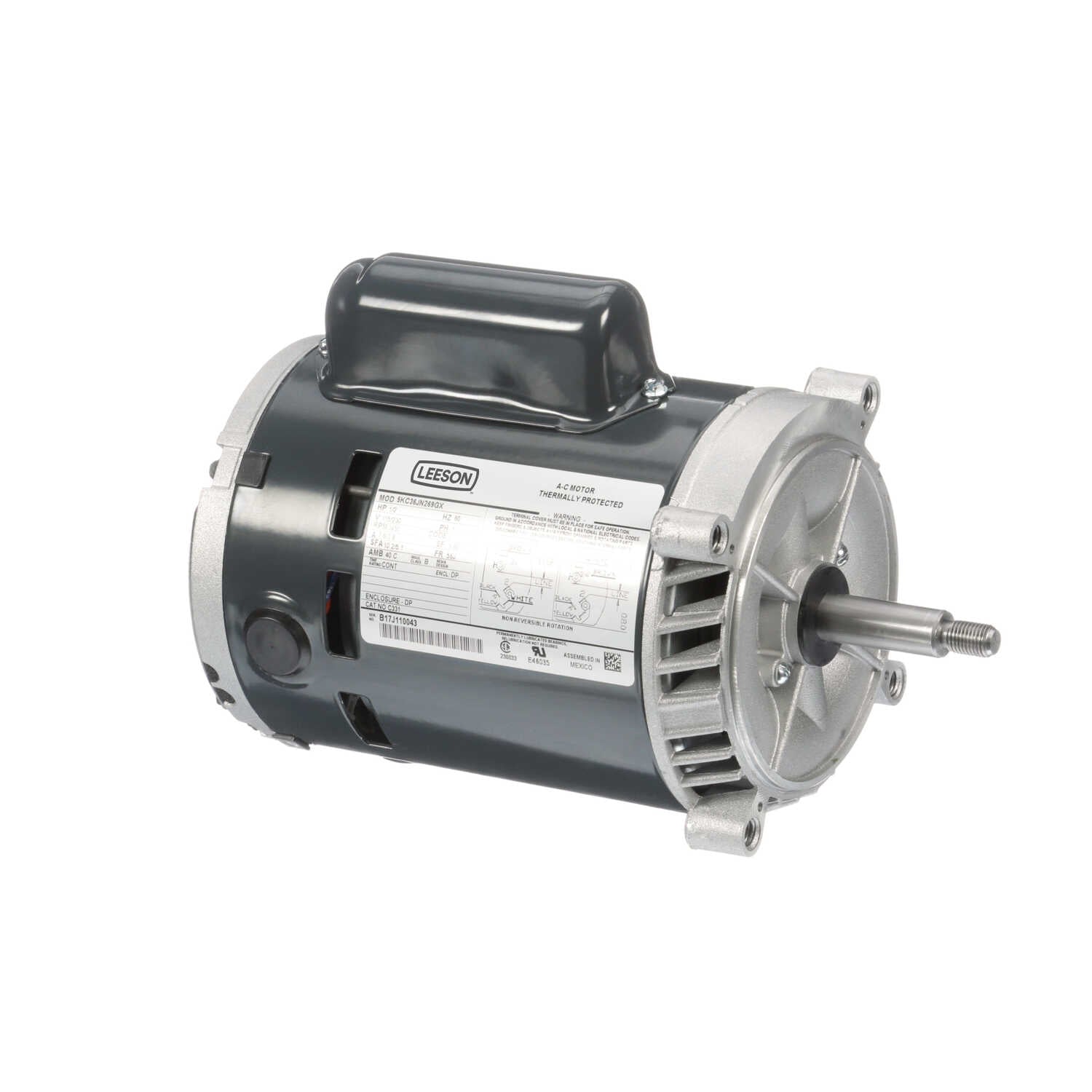

Precision Electric Motor Sales C331 Leeson General Purpose Pump Motor 1/2 HP 1 Ph 56J Frame

Product Description

The PRECISION ELECTRIC MOTOR SALES C331 is a Leeson general purpose pump motor operating at 1/2 HP, 1 Ph, and 60 Hz with a voltage of 115/230 V and a 56J frame. It is designed for continuous duty and features automatic thermal protection. This motor is suitable for various pumping applications requiring reliable performance.

• Double sealed ball bearings, mechanically locked on shaft end
• Fixed CW rotation, viewed opposite shaft end
• Automatic reset thermal protector

Product Highlights

General purpose pump motor with double sealed ball bearings and automatic reset thermal protector.

Product Information

Standard Information

• Brand: PRECISION ELECTRIC MOTOR SALES
• Manufacturer Part Number: C331
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 1/2 Hp
• Output KW: 0.37 kW
• Voltage: 115/230 V
• Speed: 3450 rpm
• Service Factor: 1.60
• Frame: 56J
• Enclosure: Drip Proof
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 7.6/3.8 A
• Power Factor: 0
• Duty: Continuous
• Insulation Class: B
• KVA Code: L
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: N
• Electrical Type: Capacitor Start Induction Run
• Starting Method: Across The Line
• Poles: 2
• Rotation: Clockwise
• Motor Orientation: Any
• Drive End Bearing: Locked
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: NEMA 56J
• Shaft Diameter: 0.625 in
• UPC: 722856032096
• Weight: 15.00 LB
• Packaged Length: 13.69 IN
• Packaged Width: 7.13 IN
• Packaged Height: 7.50 IN
• HTC: 8501.40.4040
