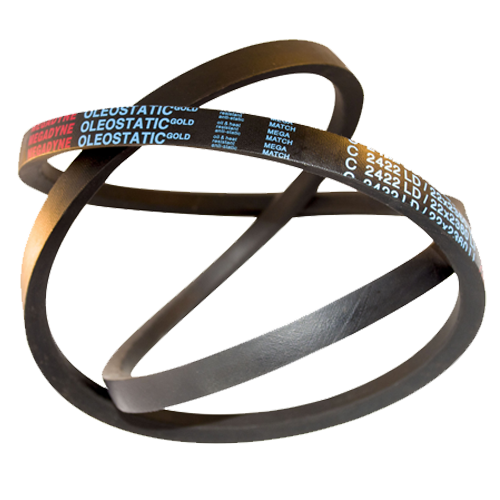

Precision Electric Motor Sales B96 Power V-Belt

Product Description

The Precision Electric Motor Sales B96 is a B section V-belt designed for power transmission. It is made to work with ISO 4183 and ISO 4184 pulleys. This belt is built with materials that resist oil, ozone, and abrasion. It has a low-stretch polyester tensile member for durability. The B96 is ideal for industrial drives and applications that involve reverse idlers.

• Belt Section: B (seventeen millimeters wide)
• Inside Length: ninety-six inches
• Temperature Resistance: from negative twenty degrees Celsius to positive seventy degrees Celsius

Product Highlights

This V-belt is built to last in tough conditions while ensuring efficient power transmission.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• Belt Number: B96

Technical Specifications

• Belt Section: B (seventeen millimeters wide)
• Inside Length: ninety-six inches (two thousand four hundred thirty-eight millimeters)
• Outside Length: ninety-eight point seventy-five inches (two thousand five hundred eight millimeters)
• Belt Width: approximately seventeen millimeters
• Belt Depth: approximately eleven millimeters
• Belt Datum Length: ninety-seven point sixty-nine inches (two thousand four hundred eighty-one millimeters)
• Temperature Resistance: from negative twenty degrees Celsius to positive seventy degrees Celsius
