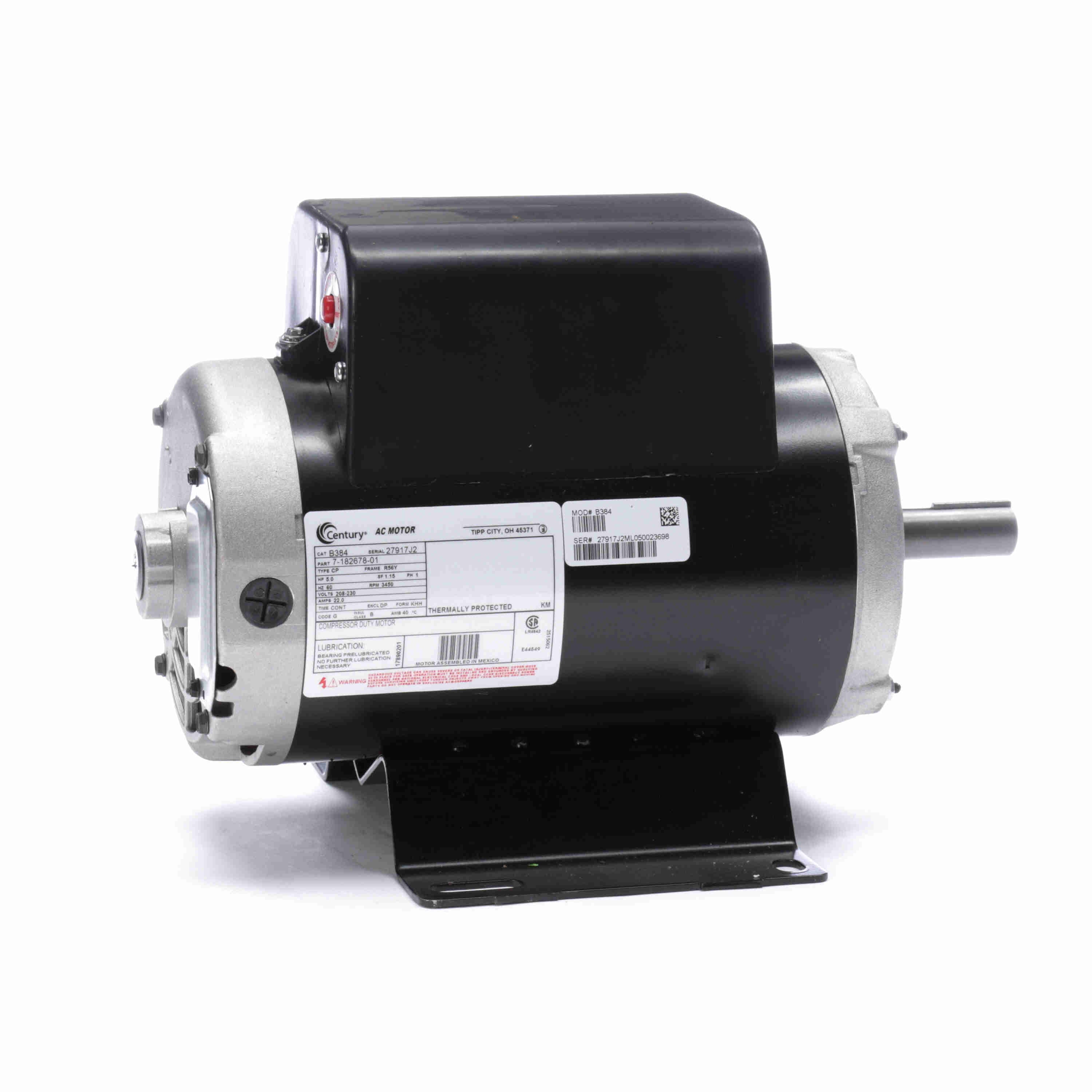

Precision Electric Motor Sales B384 Century Air Compressor Motor 5.0 HP R56Y Frame

Product Description

The PRECISION ELECTRIC MOTOR SALES B384 Century Air Compressor Motor is a 5.0 HP motor with a R56Y frame. Designed for air compressor applications, this motor operates at 208-230 V, 60 Hz, and 3450 RPM. It features capacitor start/capacitor run for efficiency and is thermally protected for safety.

• UL recognized component listing and CSA certification ensures the product is safe for use.
• High starting torque on start-up, to achieve a higher starting load required in air compressor applications.
• Capacitor start or capacitor run for low-amp, high-efficiency, as noted.

Product Highlights

Heavy-duty construction ensures durability. Ideal for air compressors requiring high starting torque and efficient operation.

Product Information

Standard Information

• Brand: PRECISION ELECTRIC MOTOR SALES
• Manufacturer Part Number: B384
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 5.0 Hp
• Output KW: 3.7 kW
• Voltage: 208-230 V
• Speed: 3450 rpm
• Service Factor: 1.15
• Frame: R56Y
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 C
• Frequency: 60 Hz
• Current: 22.0 A
• Duty: Continuous
• Insulation Class: B
• Number of Speeds: 1
• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• Starting Method: Across The Line
• Poles: 2
• Rotation: Clockwise
• Mounting: Rigid Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 14.56 in
• Frame Length: 8.75 in
• Shaft Diameter: 0.875 in
• Shaft Extension: 2.31 in
