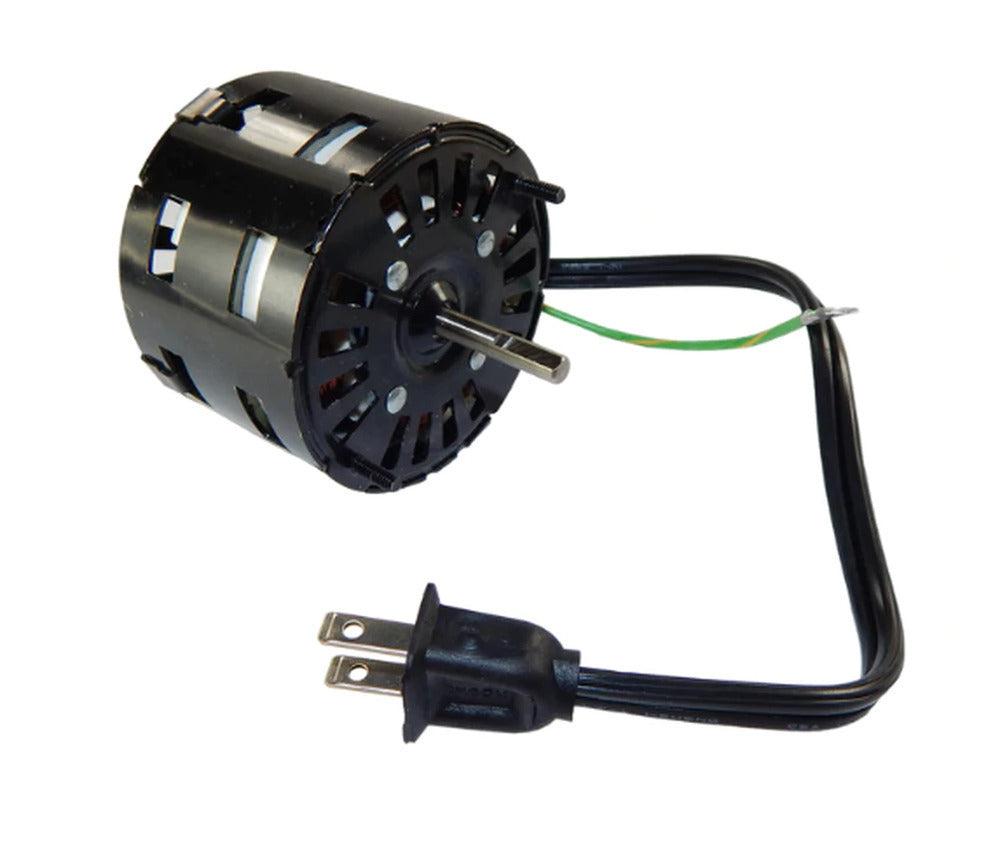

Precision Electric Motor Sales AMI-3.3-OV-1400-130 OEM Replacement Motor

Product Description

The Precision Electric Motor Sales AMI-3.3-OV-1400-130 OEM Replacement Motor is specifically designed for Nutone ventilation systems. This motor is a shaded pole type, operating on a single-phase power supply to ensure sustained performance and effective air flow.

• Operates at a speed of 1400 RPM with a current rating of 0.8 amps.
• Thermal protection is included for enhanced safety during operation.
• Versatile installation options with two mounting studs on the shaft end.

Product Highlights

It delivers reliable performance for various ventilation needs, ensuring efficient air circulation in compatible systems.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: AMI-3.3-OV-1400-130

Technical Specifications

• Electrical Type: Shaded Pole
• Phase: Single
• Voltage: 115 Volts
• Frequency: 60 Hz
• Amperage: 0.8 Amps
• Rotation: Clockwise or Counterclockwise
• RPM: 1400
• Diameter: 3.3 inches
• Enclosure: Open Air Over
• Material: Steel
• Shaft Dimensions: 1/4 inch x 1 inch
• Mounting: Two studs on the shaft end
• Motor Case Length: 2 3/16 inches
• Thermal Protection: Yes
• Bolt Circle Diameter: 2 13/16 inches
• Plug Type: 2-prong 115 Volt Plug
