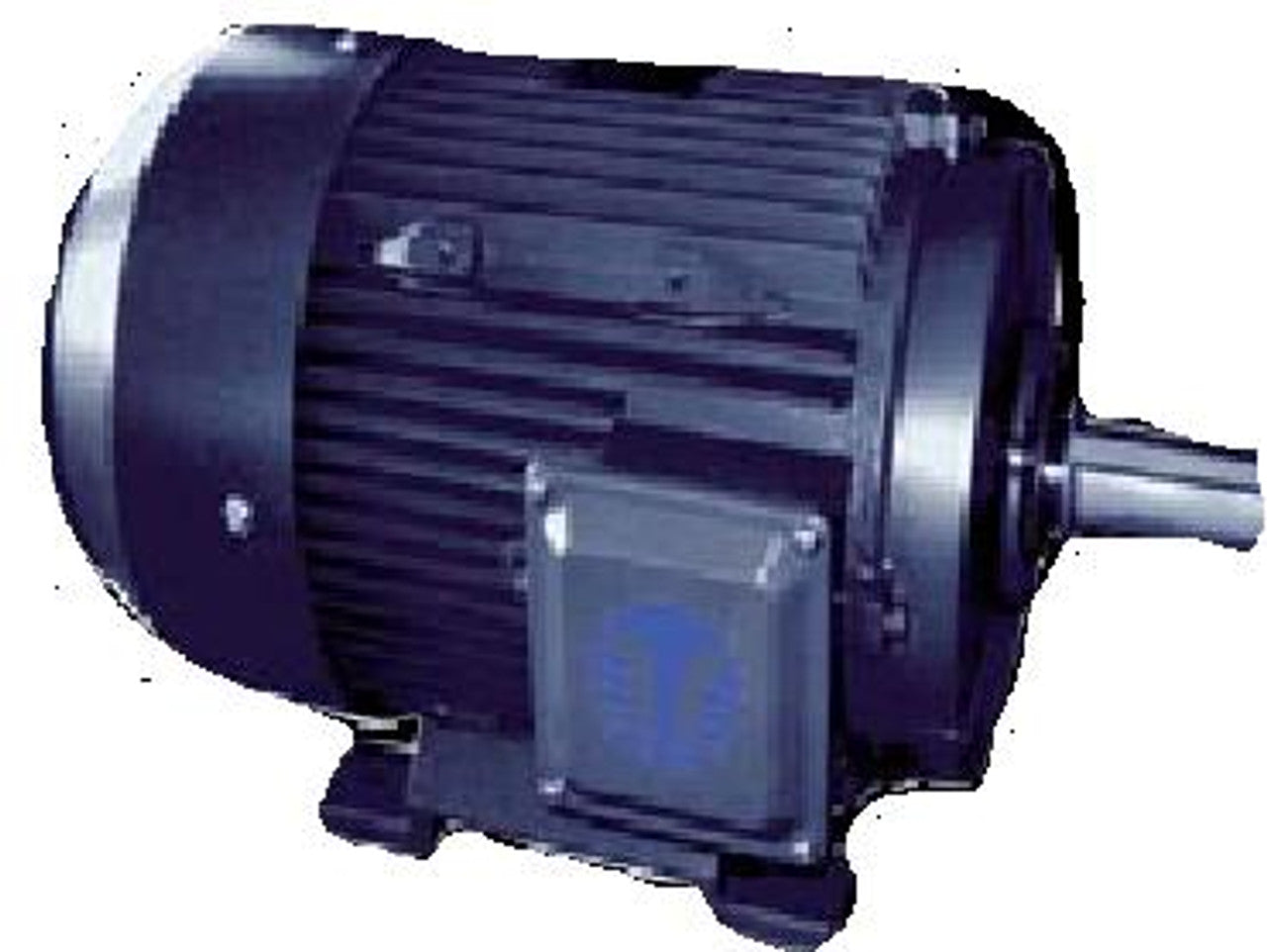

Precision Electric Motor Sales AL7.54T213TC TEFC Aluminum Motor with C-Face 7.5 HP 1800 RPM

Product Description

The AL7.54T213TC TEFC Aluminum Motor with C-Face, from Precision Electric Motor Sales, is a reliable general-purpose electric motor with a power rating of 7.5 horsepower and a speed of 1800 RPM. The motor’s design includes a durable aluminum casing that enhances longevity. Its Totally Enclosed Fan Cooled (TEFC) construction protects it from various environmental factors.

• Features 1045 carbon steel shafts for durability.
• Includes double lip seals, providing IP54 ingress protection.
• Split conduit box allows for a 90-degree rotational installation.

Product Highlights

This motor is suitable for numerous industrial applications and meets key safety standards.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: AL7.54T213TC

Technical Specifications

• Horsepower: 7.5 HP
• RPM: 1800 RPM
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Frame Size: 213TC
• Material: Aluminum Casing
• Service Factor: 1.15
• Insulation System: Class F
• Impregnation Resin: Class H
• Temperature Rating: Class B
• UL Approval: UL 1004
• EPAct Compliance: Design B
• Hazardous Location Compliance: Class 1 Div 2 Group A, B, C, D
• Shaft Material: 1045 Carbon Steel
• Starting Method: Wye-Delta Start (12 Leads)
• Mounting Configuration: Removable Feet, F1, F2, F3 convertible (Shipped F1)
• Conduit Box: Split, 90 Degree Rotatable
• Ingress Protection: IP54
